Machined Titanium - Custom Titanium Parts

Custom Titanium Parts - Machined Titanium Supplier

Discover excellence in titanium CNC machining with AEM Metal, where we offer a comprehensive range of services to craft custom parts in Titanium Gr.1, Gr.2, and Gr.5.

At AEM Metal, our extensive manufacturing network features a diverse array of CNC mills and turning centers. These cutting-edge facilities enable us to produce a wide spectrum of components – from straightforward 'as-machined' workholdings to intricate, organic geometries with strict tolerances.

Our custom titanium parts are tailored to your exact specifications, offering a level of precision that goes beyond off-the-shelf solutions. The processing scope includes but is not limited to high-precision medical in vitro diagnostic instruments, robots, intelligent equipment, analytical instruments, optical instruments, 5G equipment, petroleum equipment, new energy equipment, etc.

Stock Shape include:

Plate & Sheet & Foil
Tube & Pipe

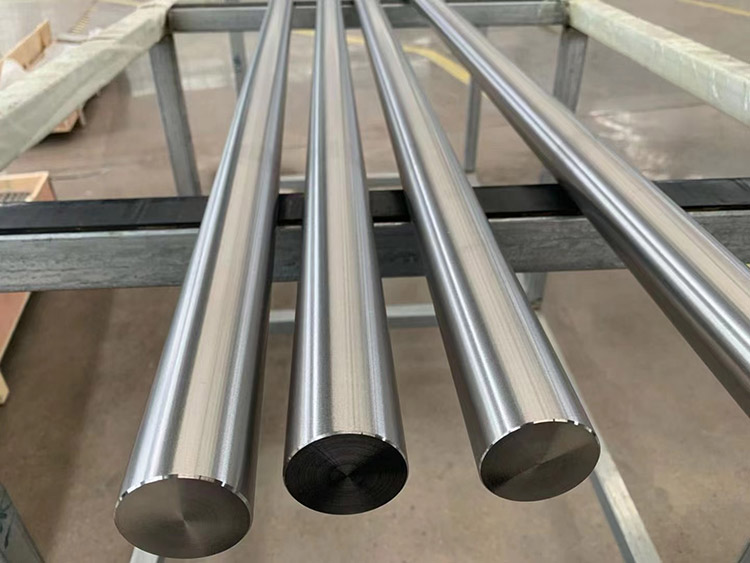

Flat Bar & Round Bar

Grade:

Pure Titanium: Gr.1, Gr.2
Titanium alloy: Gr.5, Gr.7, Gr.9

Machined Titanium - Custom Titanium Parts

Properties of Titanium

Exceptionally high strength-to-weight ratio
Corrosion resistant
Ductile
High melting point
Non-magnetic
Low thermal conductivity
Low electrical conductivity

Application

Aircraft/spacecraft frames and engines
Missiles and other weaponry
Hydraulic systems
Ocean-deployed surveillance devices and submarines
Gears
Compressor blades
Sporting equipment

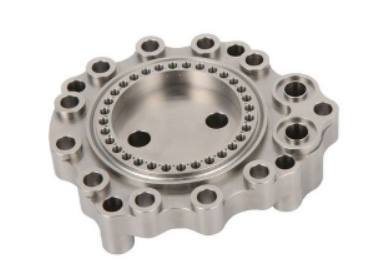

Fuel Injection Components

Material: Gr.5 (Ti6Al4V)
Dimensions: 85 mm x 85 mm x 50 mm
Product details: The fuel injection component is a multi-microporous product. The number of micropores can reach 189. The minimum micropore diameter accuracy can be 0.38±0.012mm. All apertures are offset in the same direction. TC4 titanium alloy is selected for CNC processing. This product has excellent corrosion resistance, high strength, good toughness and weldability.
Scope of use: used in automobile parts, motorcycle parts, mechanical parts, ship parts, petrochemical equipment, medical equipment, etc.
Processing process: milling is carried out through an intelligent 5-axis automatic machining center, using customized drill bits and anti-burr technology to ensure that the finish inside the hole is within the range of Ra1.6, flatness 0.01mm, and rotation groove angle tolerance 0.05°, and the product will turn without burrs. side.

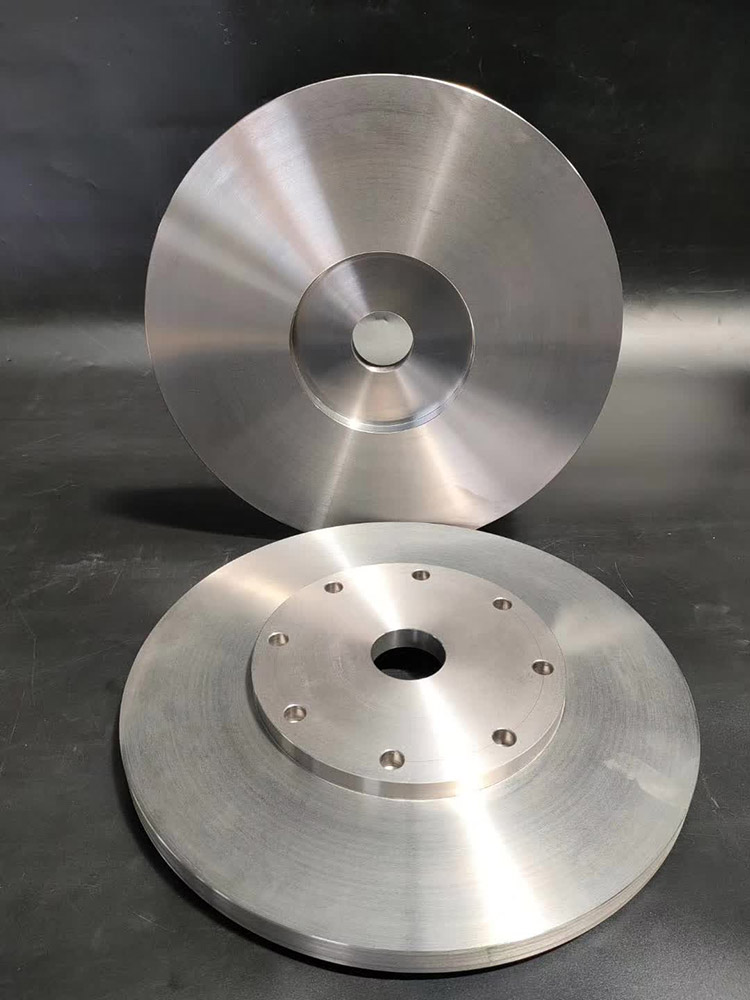

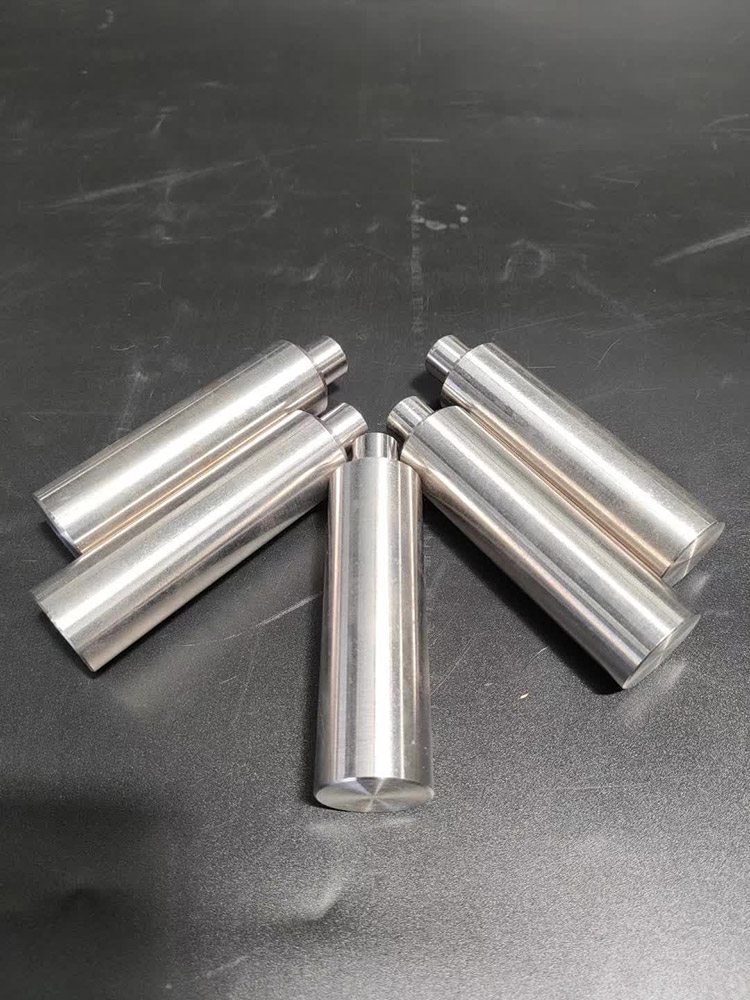

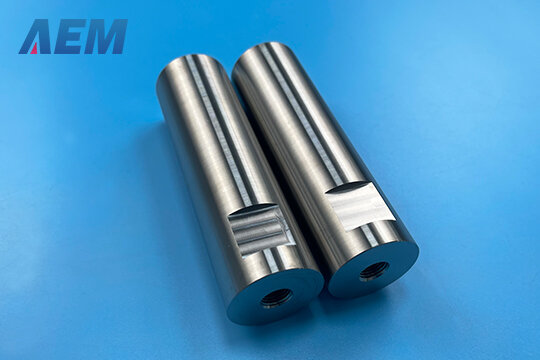

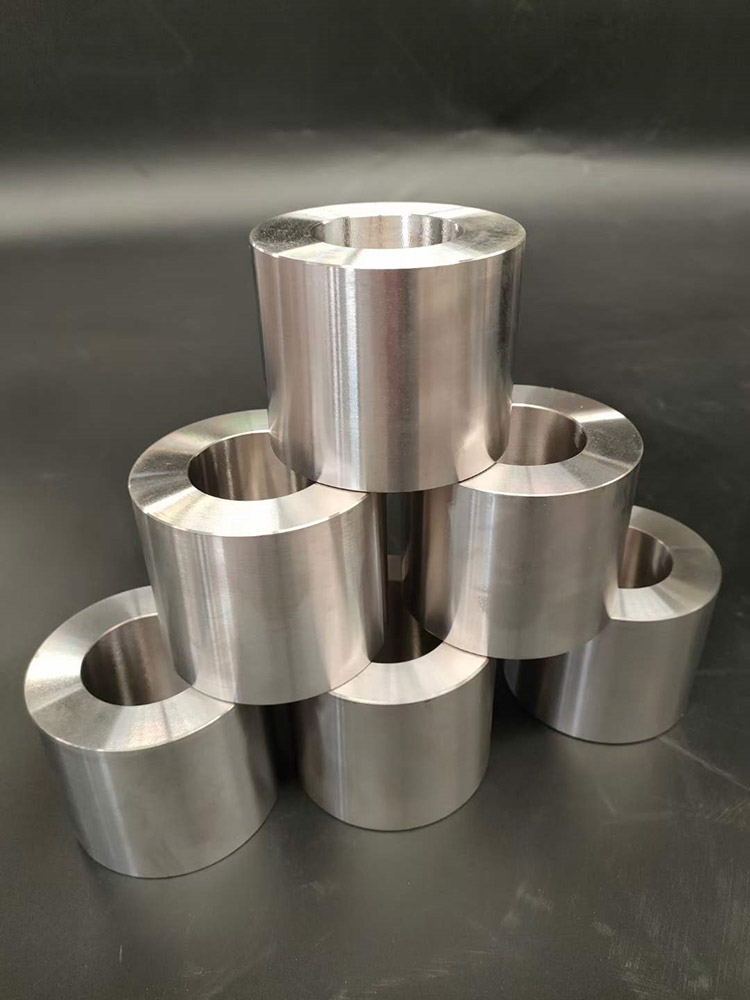

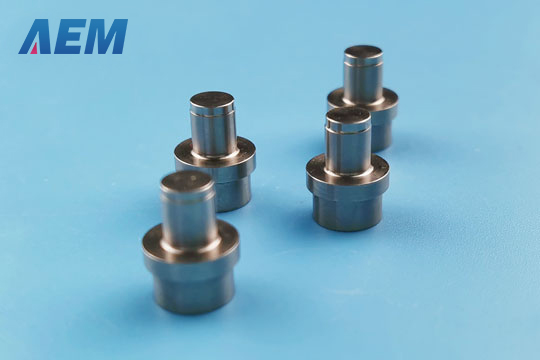

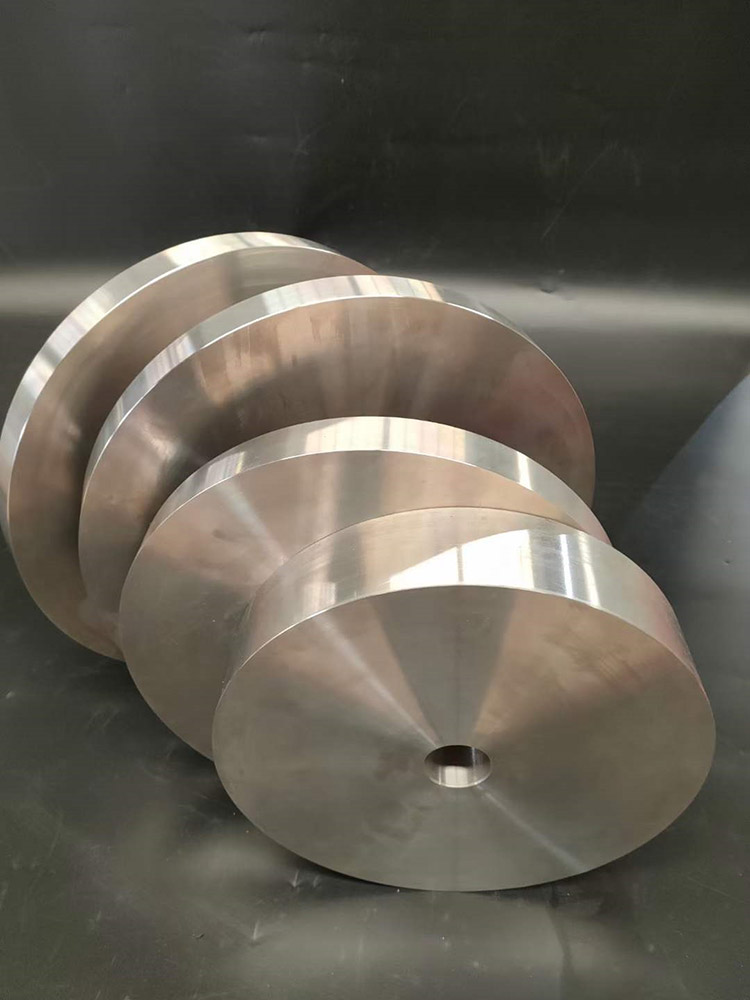

Custom Titanium Parts Display

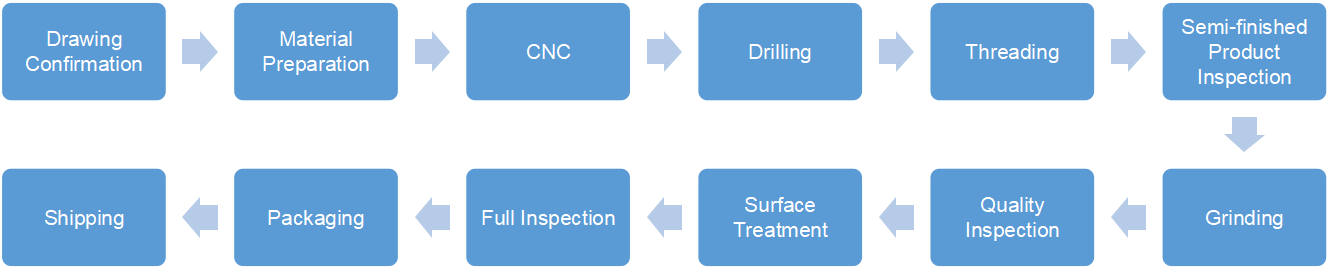

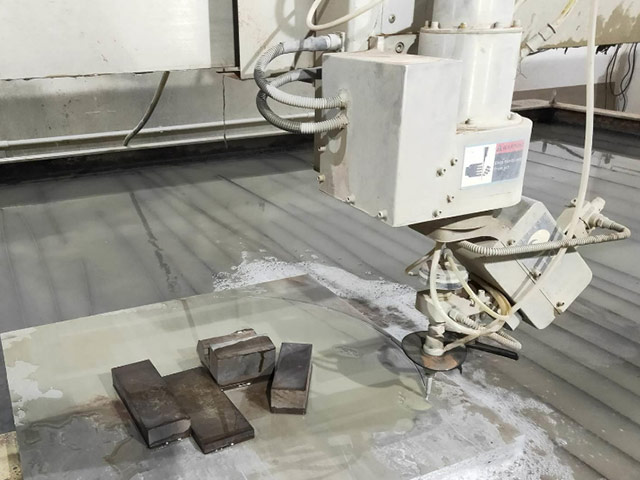

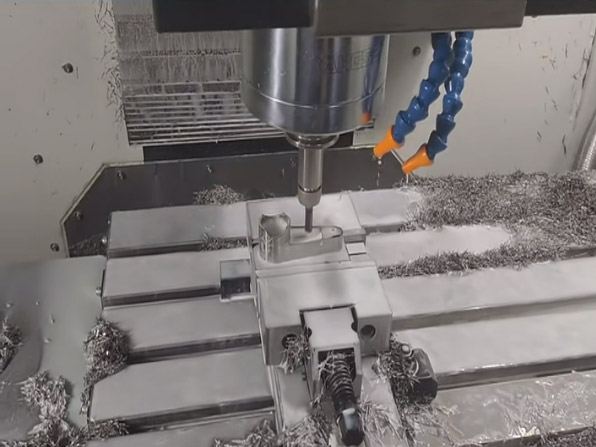

Process of Custom Titanium Parts

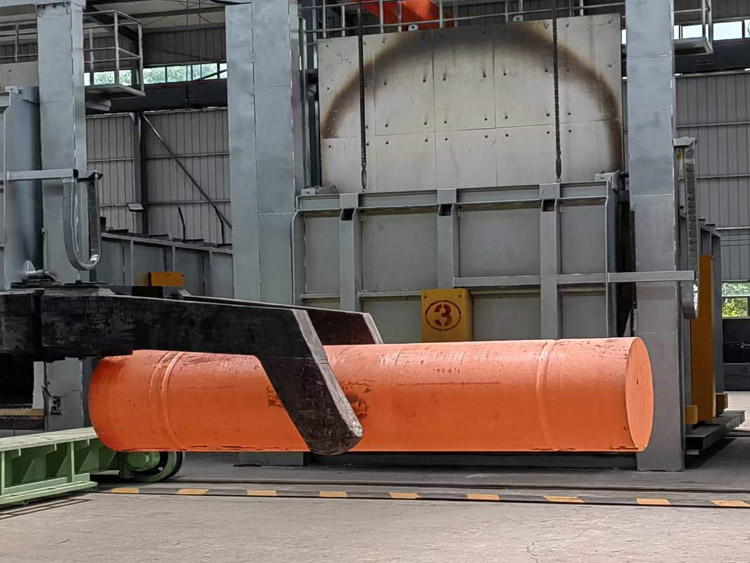

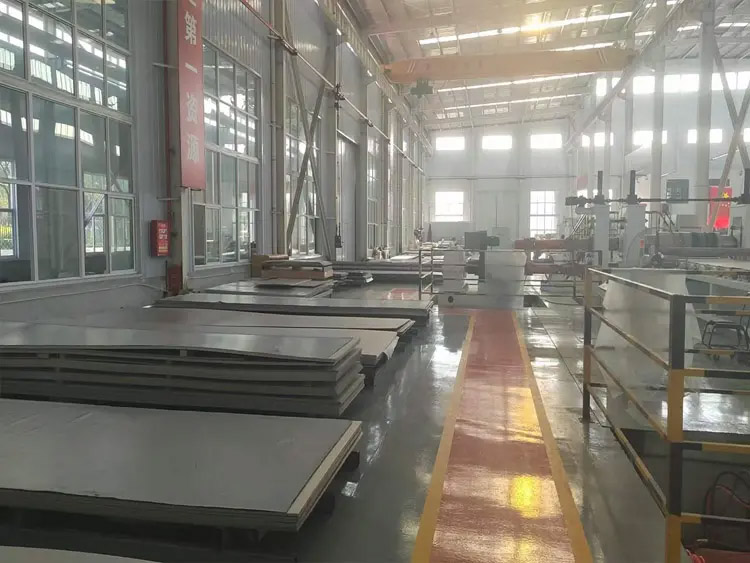

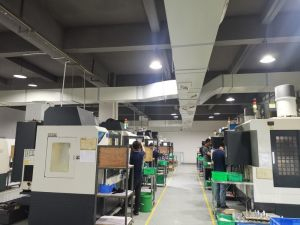

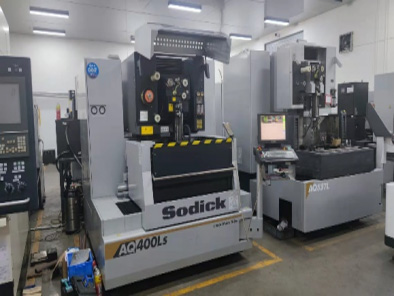

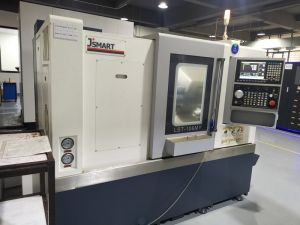

Titanium Processing Center

Explore Endless Possibilities with Customization Options

Material Selection:

Choose from a range of titanium grades, including TA7 and Ti-6Al-4V, to match the specific requirements of your application.

Dimensional Precision:

Specify precise dimensions and tolerances for your custom titanium parts, ensuring a perfect fit for your project.

Surface Finishes:

Elevate the aesthetics and functionality of your components with customizable surface finishes, including polished, brushed, or coated options.

Innovative Features:

Add bespoke features such as threading, grooves, or other intricate details to meet the unique demands of your project.

The pictures are from https://lnkd.in/g6Ts3hAg

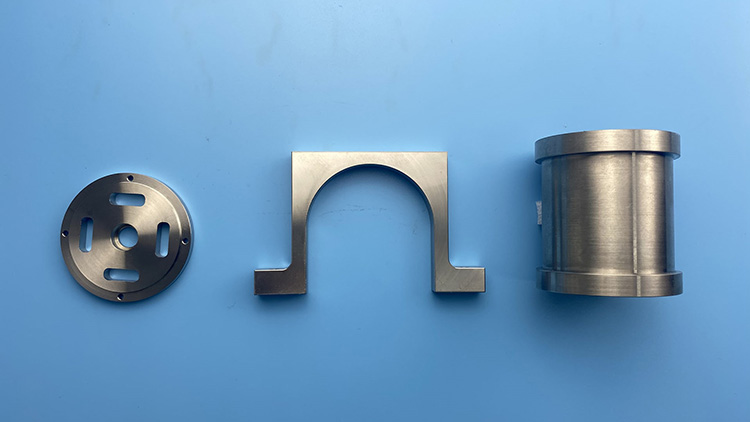

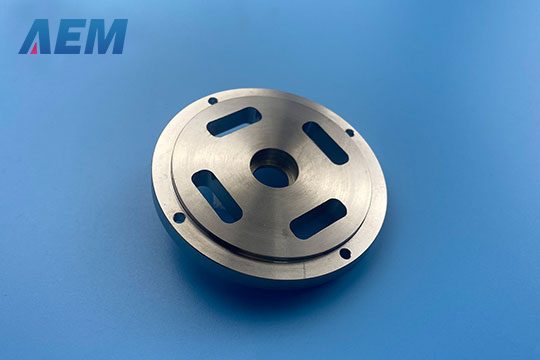

The Cooperation with Mississippi State University

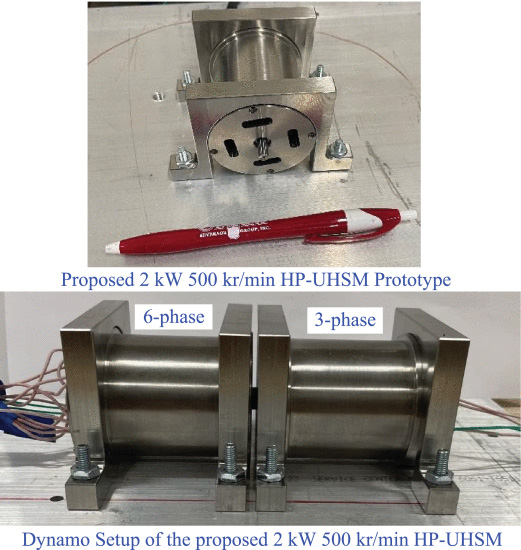

AEM Metal provide the titanium alloy custom parts for "Designing High-Power Ultra-High-Speed Motor Using a New Multiphysics Multi-Objective Optimization Method for Mechanical Antenna Applications".

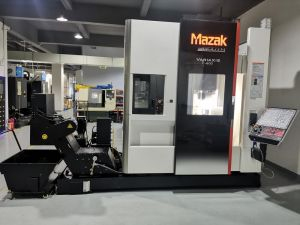

Titanium Processing Center

The Cooperation with King Abdullah University of Science & Technology

Titanium Processing Center

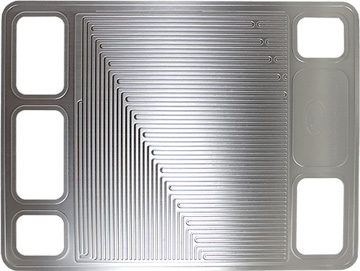

A titanium bipolar plate substrate is usually chosen as the base metal due to its low cost, ease of manufacture into stampable bipolar plates, and its light weight.

The cell performance of the gold-plated bipolar plates is close to and even better than the PEM fuel cells with graphite and pure titanium bipolar plates. Gold-plated titanium bipolar plates can be employed to produce fuel cells with light weight, low coating cost and low contact resistance, ideal for portable applications.

FAQs About Custom Titanium Parts

What is CNC milling?

CNC mills are automatic cutting machines that use a rotating spindle head to remove unwanted material. CNC milling machines come in a variety of sizes and with different axis configurations. They are primarily used for cutting harder metals, but can machine workpiece materials such as plastic and aluminum, stainless steel, and titanium.
For CAD drawings, what are the commonly used file formats?
1. DWG (Drawing): Developed by Autodesk, DWG is a proprietary file format used for storing 2D and 3D design data and metadata. It is widely used in AutoCAD and other Autodesk software.
2. DXF (Drawing Exchange Format): Also developed by Autodesk, DXF is a file format for exchanging CAD drawings between different CAD applications. It is a plain text format, making it human-readable, and it supports 2D and 3D data.
3. STL (Stereolithography): STL is a file format commonly used for 3D printing and computer-aided design. It represents 3D surface geometry as a series of interconnected triangles. STL files are widely supported by various CAD and 3D printing software.
4. STEP (Standard for the Exchange of Product Data): STEP is an ISO standard for the computer-interpretable representation and exchange of industrial product data. It is a versatile and neutral format used for exchanging 3D CAD models.
5. PDF (Portable Document Format): While not a native CAD format, PDF is widely used for sharing CAD drawings in a format that is easily viewable and printable. Some CAD software allows the export of 2D and 3D drawings to PDF.
6. DGN (MicroStation Design File): DGN is a file format used by Bentley Systems' MicroStation CAD software. It can store 2D and 3D design data and is used primarily in architecture and engineering.
What's the lead time?

The delivery time is generally 3-4 weeks, depending on the complexity of the product process, quantity and number of orders. Usually after the Chinese Spring Festival and National Day (early October each year), the order volume will increase and the delivery time will be extended.
Do you offer samples before placing a large order?

Yes, we'd like to provide samples.
What factors affect titanium's quality?

Purity, processing methods, and alloy composition are key factors.
What kind of support do you offer after purchase?

We offer comprehensive after-sales support. This includes technical assistance and warranty services.

What is CNC turning?

CNC lathes, also known as power tool lathes, are ideal for cutting any symmetrical cylindrical or spherical part. Characteristically, the lathe rotates the workpiece on a vertical or horizontal axis, while the fixed forming instrument moves around it in a more or less linear path. The action of cutting the workpiece on a CNC lathe is called turning.
What's the shipping methods?

We usually choose UPS, DHL or FedEx. If the gross weight is > 100 kg, we could choose sea transportation. You can also tell us which shipping methods you prefer.
What are the grades of titanium available?

We offer various grades, each suited for different applications.
Gr1, Gr2, Gr3, Gr4, Gr5 (Ti-6Al-4V), Gr7 (Ti-0.2Pd), Gr9 (Ti-3Al-2.5V), Gr12 (Ti-0.3Mo-0.8Ni), Gr23 (Ti-6Al-4V ELI).
Can titanium be combined with other metals?

Yes, it's often alloyed to enhance its properties.
Is there a warranty period for the titanium products?

Yes, we offer a warranty. We stand by the quality of our products and can discuss warranty options based on your specific needs.
