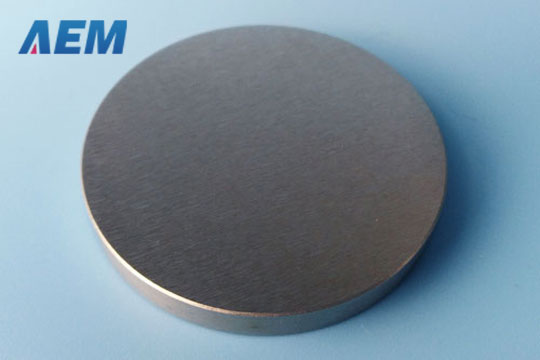

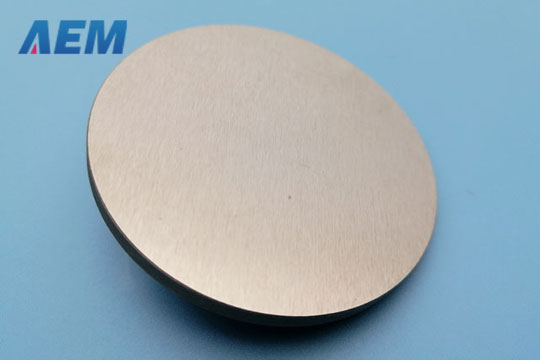

    Tungsten Sputtering Target

    Tungsten Sputtering Target
  • Tungsten Sputtering Target
  • Tungsten Sputtering Target
  • Tungsten Sputtering Target

    Tungsten has the highest melting point (3422℃, 6192 ℉), lowest vapor pressure (at temperatures above 1650℃, 3000 ℉), and the highest tensile strength in all metals available in pure form. Although carbon remains solid at higher temperatures than tungsten, carbon sublimes at atmospheric pressure instead of melting, so it has no melting point. Tungsten has the lowest coefficient of thermal expansion of any pure metal. The low thermal expansion, high melting point, and tensile strength of tungsten originate from strong covalent bonds formed between tungsten atoms by the 5d electrons. Alloying small quantities of tungsten with steel greatly increases its toughness.

    Tungsten Sputtering Target Properties

    Purity: W>99.95%
    Density: >19.1g/cc
    Circular: Diameter <= 14inch, Thickness >= 1mm
    Block: Length <= 32inch, Width <= 12inch, Thickness >= 1mm
    Types: Planar & rotary tungsten sputtering targets

    Tungsten Sputtering Target Applications

    Tungsten sputtering target can be applied in the vacuum coating industry, X-ray tube, ion sputtering, flat panel display industry, and photovoltaic industry. Tungsten sputtering target can be used as a thin-film solar cell electrode, wiring material, and barrier layer material of semiconductor.
    AEM can provide a sputtering target made by tungsten and its alloys used in TFT-LCD and solar energy.

    Tungsten Sputtering Target Specifications

    Below are most of the standard sizes for our tungsten sputtering targets. If you do not find the size you need, please feel free to contact us.
    Thickness Width Length Parallelism Verticality Surface Finish
    8.0~16.0 10~450 10~500 <0.05 <2o <Ra0.8
    3.0~8.0 10~450 10~800 <0.05 <2o <Ra0.8
    1.0~3.0 10~450 10~1200 <0.05 <2o <Ra0.8
