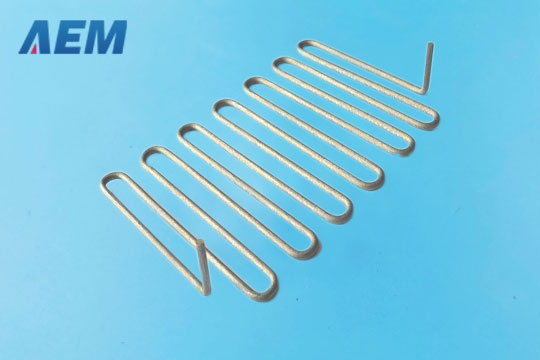

    Molybdenum Heating Elements

    Molybdenum Heating Elements
  • Molybdenum Heating Elements
  • Molybdenum Heating Element

    Molybdenum is refractory metal and is ideally suited for use at high temperatures. With their special properties, molybdenum is the perfect choice for components in the furnace construction industry. Molybdenum heating elements (molybdenum heater) are mostly used for high-temperature furnaces, sapphire growth furnaces, and other high-temperature furnaces.
    Standard: ASTM B387
    Material: Mo-1, Mo-2, >99.95%
    Density: >10.20g/cc
    Application temperature environment: <1900°C

    Molybdenum Heating Element Applications

    Molybdenum heating elements can be expected, under proper conditions, to maintain temperatures up to approximately 1900°C. These are widely applied in high-temperature resistance furnaces, sapphire growth furnaces.

    Molybdenum Heating Element Specifications

    Molybdenum heating elements can be welded and sliced. Molybdenum heating elements should be made of one continuous piece of wire, rod, or ribbon. Standard availability is described below. Other sizes and tolerances are available.
    Diameter (mm) Width (mm) Height (mm)
    Size Tolerance Size Tolerance Size Tolerance
    3 ±0.1 <650 ±5.0 <1200 ±10.0
    4 ±0.1 <600 ±5.0 <1150 ±10.0
    5 ±0.1 <550 ±5.0 <1100 ±10.0
    6 ±0.2 <550 ±5.0 <1050 ±10.0
    7 ±0.2 <500 ±5.0 <1000 ±10.0
    8 ±0.2 <500 ±5.0 <950 ±5.0
    9 ±0.2 <450 ±5.0 <900 ±5.0

    Molybdenum Heating Element Properties

    High operating temperatures
    Outstanding creep resistance
    High level of dimensional stability
    Extremely pure
    Excellent corrosion resistance
    Low coefficient of expansion
