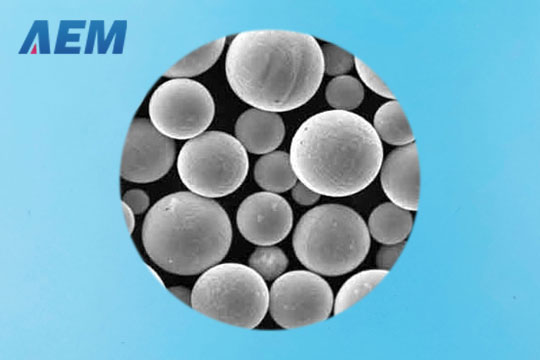

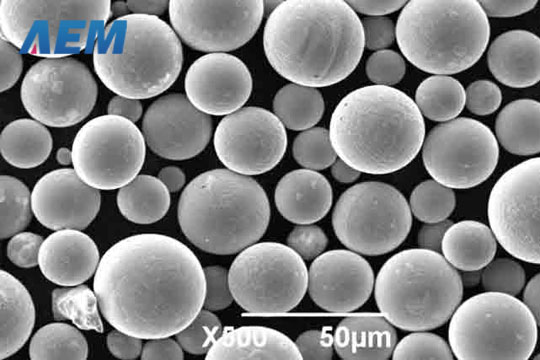

    Spherical Cobalt Powder

    Spherical Cobalt Powder
  • Spherical Cobalt Powder
  • Spherical Cobalt Powder
  • Spherical Cobalt Powder
  • Spherical Cobalt Powder

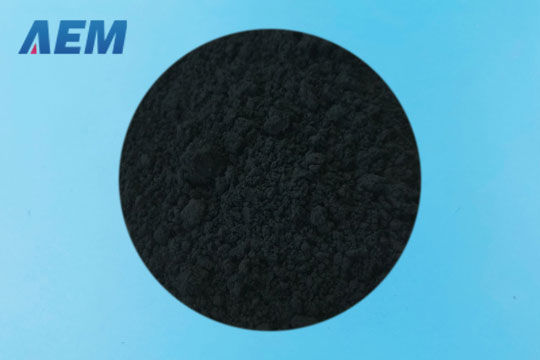

  • Cobalt Powder

    Cobalt powder's three forms are reduced, electrolytic, and atomized. It's one of the key ingredients of superhard alloy. The properties determined the bonding property, strength, and toughness of superhard alloy. It is widely used for hard alloy, diamond tool, high-temperature alloy, magnetic materials of metallurgical products, and making rechargeable batteries, industrial blasting agents, rocket fuel, and medical products.

    Cobalt-based alloy powder is a hard alloy powder that can resist various wear, corrosion, and oxidation at high-temperature. It contains a considerable proportion of Cr, and W, and a small amount of Ni, Mo, Si, C, Nb, Ta elements while the Co is the main ingredient. These cobalt alloy powders are used in overlayed welding, spray welding, which can also fabricate casting, and powder metallurgy components, such as high-temperature pressure valve, sawtooth, and helical rotor.

    Most of our customers are alloy production companies and coating companies from all over the world. They ordered large quantities at one time. The cobalt powder supplier AEM provides high-density powders with customized sizes. If you did not find the size you need, please email us or have any queries about powders, please contact us. We will be delighted to provide help.


    Cobalt Metal powder


    Cobalt metal powder is specifically designed and manufactured for use in high-quality cemented carbide and related products. The hard metal industry demands Cobalt spherical powder with high standards of purity, fine particle size, and consistent particle size distribution. Cobalt atomized powder is used for the manufacturing of Diamond Tools. Main diamond tools produced using cobalt are diamond segments, tool wires, tool blades, etc, which are used for cutting stones such as marbles and granite.

    Grade Product Name Chemical Composition (wt%) Particle Size Apparent Density (g/cm3) Properties
    Co-1 Cobalt Powder Co: ≥ 99.5%
    Ni: 0.05
    Fe: 0.01
    Na: 0.015
    Cu: 0.01
    Zn: 0.08
    Mg:0.008
    C: 0.030
    S: 0.03
    Mn: 0.008
    O: 0.50

     ≤ 2 um,
     -200 mesh,
     -300 mesh
     Customized sizes are available.
    0.7 - 1.0  Lightgray, electrolytic, reduced, atomized



    Cobalt based Alloy Powder (Thermal Sparaying and Welding Powder)


    Cobalt based alloys typically contain tungsten and carbon for strengthening. Carbon has low solid solubility in cobalt, and therefore most of its partitions are in WC, W2C, M6C, or other carbides. These hard phases have a strengthening effect, giving such alloys high hardness and strength at a temperature under 800℃. The Cobalt-Chromium-Tungsten-Carbide alloys generally have excellent properties to resist high-temperature, oxidation, and thermal fatigue.
    Cobalt has a hexagonal-closed-packed (hcp) crystal structure at temperatures below 417℃. Intrinsically, it has a low coefficient of friction resulting in excellent wear resistance. At temperatures above 417℃, cobalt transforms from HCP to FCC (face-centered-cubic) crystal structure, thereby generating thermal stress. Therefore, it is recommended that in weld overlaying and spraying, the parts being coated are pre-heated to 500-600℃ to avoid cracking in the coating or overlay.

    Co-Cr-W

    Grade Hardness HRC Chemical Composition Particle (mesh) Application
    C Cr Si W Fe Mo Ni Co Mn P
    Co01 48-54 2.4 30 1 12 ≦3.00 ≦1.00 ≦3.00 Bal. ≦1.00   100/270 Valve seats, bearing, cutting blades
    Co03 48-54 2.3 30 1 12 ≦3.00 / ≦3.00 Bal. /   100/270 Needle valve seats, guide roils valve seats
    Co06 38-44 1.2 30 1 4.5 ≦3.00   ≦3.00 Bal. ≦1.00   100/270、300/500 Engine values, high temperature pressure valves, turbo engine blades
    Co156 40-45 1.6 28 1.1 4       Bal.     100/270 Automotive partis, military application
    Co06H 43-48 1.3 30 1.5 5.5 3.00Max 0.8 3.00Max Bal. 1.0Max   100/270 Engine values, high temperature pressure valves, turbo engine blades
    Co12 42-48 1.4 29 1.4 8.5 ≦3.00 ≦1.00 ≦3.00 Bal. ≦1.00   100/270 High temperature pressure valves, turbo engine blades
    Co12B 45-49 1.3 30 1 5.5 3.0Max 5 10.5 Bal. 1.0Max   100/270 Saw, guide plates
    Co12H 48-53 1.7 30 1.7 7 2.0Max 2 3.0Max Bal. 0.5Max   100/270 High temperature pressure valves, saw teeth, extrusion screws
    Co6113 43-48 1.8 27       4 6 Bal.     100/270 Resistance to corrosion and wear
    Co107 40-44(46-50) 2 35 1 5 2.0Max   24 Bal. 1   100/270 Work hardening
    Co19 48-56 1.8 31 1 11 3.0Max   3.0Max Bal. 1   100/270 Cutting knives
    CoF 37-44 1.6 26 1.1 12 3.0max 0.5Max 22.5 Bal. 0.5Max   100/270 Engine values
    CoFH 38-44 1.4 28 1.2 12 3.0Max 0.8 22.5 Bal. 0.5   100/270 Engine values
    Co20 47-53 2.5 32 1 18 ≦3.00 ≦1.00 ≦3.00 Bal. ≦1.00   300/500 Bearing sleeves, wear plates
    Co07 30-36 0.4 26 0.9 5.5 3.0Max   3.0Max Bal. 0.3   100/270 Steam turbine blades, brass casting molds, extrusion molds
    CoX-40 30-35 0.8 25.5 0.4 7.5 1.0Max 1.0Max 10.5 Bal. 0.5Max 0.04Max 100/270 Steam turbine pans for resisting high temperature degradation and erosion
    Co31 30-35 0.4 25.5 0.8 7.5 2.0Max 0.5Max 10.5 Bal. 0.5Max   100/270 Steam turbine pans for resisting high temperature degradation and erosion
    Co694 47-53 1 28 1 19 2.5Max     Bal. 1   100/270 Steam turbine parts for resisting temperature degradation and erosion
    Co25 20Max 0.05Max 20 0.8 15 3.0Max 8 10 Bal. 1.3   100/270 Hot extrusion molds
    Co306 34-40 0.4 25 1 2.5 4.0Max   6 Bal. 1   100/270 Steel hot rolling shears, clangs, guide rolls
    Co238 20-26 0.1 26 1   20 3   Bal. 1   100/270 Forging dies
    Co190 57-63 3.3 26 0.8 14 3.0Max 1.0Max 3.0Max Bal. 1.0Max   100/270 Oil drilling heads
    Co400 48-54 0.08Max 8.5 2.5   2.0Max 29 1.0Max Bal. 0.5Max   100/270、300/500 Galvanizing line bearing sleeves and shaft sleeves
    Co400M1 50-54 0.08Max 14 2.6   0.5Max 26 0.5 Bal. 0.1Max   100/270、300/500 Resist high-temperature corrosion, galvanizing bearing sleeves, shaft sleeves
    Co400M2 46-52 0.08Max 17 1.2   0.5Max 22 0.5Max Bal. 0.5Max   100/270、300/500 Resist high temperature corrosion, galvanizing bearing sleeves, shaft sleeves, natural gas engine valves
    Co800 52-58 0.08Max 17.5 3.5   2.0Max 29 1.0Max Bal. 0.5Max   300/500 Resist high temperature degradation


    Co-Cr-Mo

    Grade Hardness (HRC) Chemical Composition Particle (mesh) Application
    C Cr Si Fe Mo Ni Co Mn
    Co706 38-43 1.2 29 0.5 3.0Max 5 3.0Max Bal. 1 100/270、300/500 Pressure valves with high temperature corrosion resistance
    Co712 45-50 1.8 29 0.5 3.0Max 9 3.0Max Bal. 0.5 100/270 Pressure valves with high temperature corrosion resistance, ectrusion screws
    Co701 50-56 2.5 31 0.5 3.0Max 13 3.0Max Bal. 0.5 100/270 Pressure valves with high temperature corrosion resistance, ectrusion screws
    Co720 54-60 2.5 33 0.5 3.0Max 18 3.0Max Bal. 0.8 300/500 Pressure valves with high temperature corrosion resistance
    Co721 18-24 0.05Max 30 0.6 8 4 0.3Max Bal. 0.7 100/270 Steam turbine erosion-resistant parts


    Self-fusing Cobalt Base Alloy Powder

    Grade Hardness (HRC) Chemical Composition Particle (mesh) Application
    C Cr Si W Fe Mo Ni Co Mn B
    Co157 51-57 0.3 22 1.5 5 3.0Max   3.0Max Bal.   2.4 150/300 High temperature pressure valves
    Co158 40-46 0.8 29 1.5 5.5 3.0Max ≦1.00 ≦3.00 Bal. ≦1.00 0.8 150/300 High temperature pressure valves
    Co158V 45-50 1 30 1.2 8 3.0Max   3 Bal. 0.3Max 0.8 200/400 Motorcycle engine valves
    CoWC35 57-63 2.4 12 2.6 33 3.0Max   9 Bal.   1.9 150/300 Motorcycle engine valves
    CoSF6 40-46 0.6 18 2.3 7.5 3.0Max 1.0Max 14 Bal. 0.5Max 1.7 150/300 Galvanizing line bearing and shaft sleeves
    CoSF12 46-52 0.9 18 2.8 9 3.0Max   14 Bal. 0.5Max 1.8 150/300 High temperature pressure valves and seats
    CoSF1 52-58 1.2 19 2.8 12 3.0Max   12 Bal. 0.5Max 2.4 150/300 High temperature pressure valves and seats
    CoSF20 59-64 1.5 19 3 15 2.0Max   13 Bal. 0.5Max 3 150/300 High temperature pressure valves and seats
    CoSFT400 55-60 0.1 10 2.5   1.0Max 22 5 Bal. 0.5Max 1.8 100/270 Galvanizing line bearing shaft sleeves

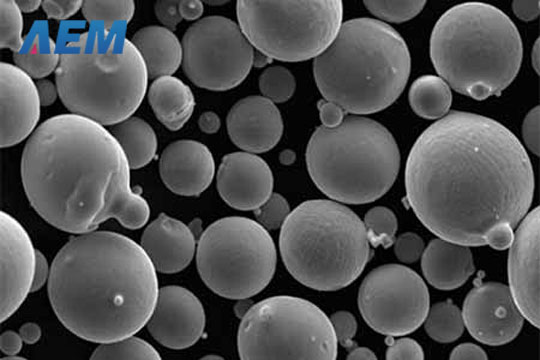

    Spherical Cobalt Based Alloy Powder

    Spherical Cobalt Based Alloy Powder

    Cobalt based alloy powder is hard alloy powder that can resist various wear, corrosion, and oxidation at high-temperature. It contains a considerable proportion of Cr and W, and a small amount of Ni, Mo, Si, C, Nb, Ta elements and the Co is the main ingredient. These cobalt alloy powders are used in overlayed welding, spray welding, which can also fabricate casting, and powder metallurgy components, such as high-temperature pressure valve, sawtooth, and helical rotor.

    Grade: CoCrMo, CoCrMoW, CoCrW
    Standard: GB/T 17100, ASTM F75, ASTM F562, GB/T 1480, GB/T 5329, GB/T 8180
    Particle Size: 0-20μm, 15-45μm, 15-53μm, 53-105μm, 53-150μm, 105-250μm
    Shape: Spherical, Ψ0≥0.85
    Appearance: Gray
    3D Printing Application: SLM, EBM, LMD
    Other Application: PM, MIN, HIP, SP, Welding repair
    Package: Vacuum packaging (Aluminum foil bag) or argon-filled protective packaging (Aluminum bottle)

    Chemical Composition of Cobalt-based Alloy Powder

    Chemical Composition
    (wt%)
    Grade
    CoCrMo CoCrMoW GH5188 GH5605 GH5941
    Cr 26-30 23.7-25.7 20-24 19-21 19-23
    Mo 5-7 4.6-5.6
    Si ≤1 0.8-1.2
    Mn ≤1
    Fe ≤0.75 ≤0.5 ≤3 ≤3 ≤1.5
    Ni ≤0.5   20-24 9-11 19-23
    Co Bal. Bal. Bal. Bal. Bal.
    W ≤0.5 4.9-5.9 13-16 14-16 17-19
    C ≤0.16   0.05-0.15 0.05-0.15 ≤0.1
    Al ≤0.1
    Ti ≤0.1
    P ≤0.02
    S ≤0.01
    B ≤0.01
    O ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01
    N     0.13-0.25 0.13-0.25 0.13-0.25
    Ta     ≤0.05 ≤0.05 ≤0.05
