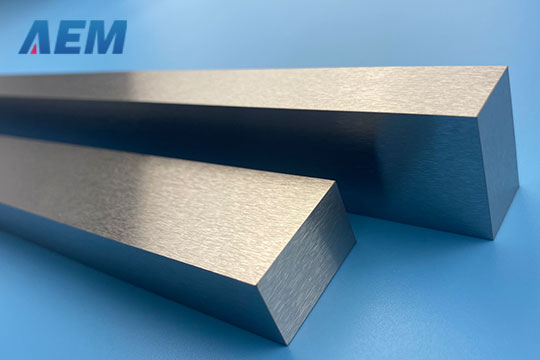

    Molybdenum Bar

    Molybdenum Bar
  • Molybdenum Bar
  • Molybdenum Bar
  • Molybdenum Bar
  • Molybdenum Bar
  • Molybdenum Bar



    Molybdenum is gray-metallic and has the third-highest melting point of any element next to tungsten and tantalum. It is found in various oxidation states in minerals but does not exist naturally as a free metal. Molybdenum allows readily to form hard and stable carbides. For this reason, Molybdenum is frequently used for making steel alloys, high strength alloys, and superalloys. Molybdenum compounds usually have a low solubility in water. Industrially, they are used in high-pressure and high-temperature applications such as pigments and catalysts.

    Standard: ASTM B387
    Material: >99.95%
    Density: 9.8~10.20g/cc

    Molybdenum Bar Applications

    Molybdenum bar is mainly used in drawing thin molybdenum wire, producing molybdenum electrode, and steel-making additives. Meanwhile, the molybdenum bar is also widely used in the furnace industry for radiation screens, elements, and sintering trays.

    Molybdenum Bar Specifications

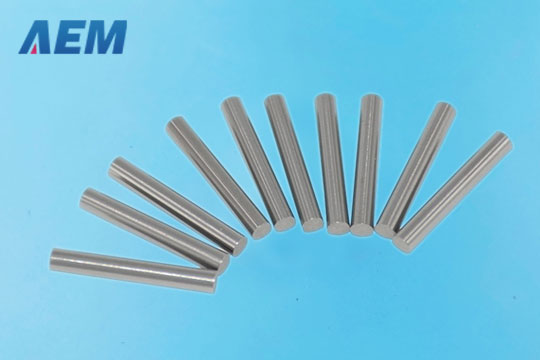

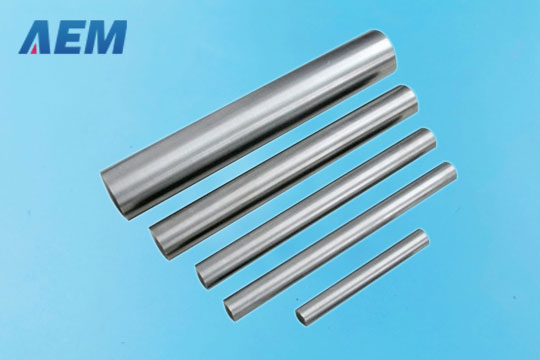

    Molybdenum round bar is manufactured as random length pieces or cut to customers’ desired lengths in diameters ranging from 0.080 inches to 6.00 inches. Please view Molybdenum Rod to see our standard sizes of round bars. Below are most of the standard sizes of our molybdenum rectangular bars. If you do not see the size of the molybdenum bar you require, please feel free to contact us.
    Width Thickness Length Length Tolerance
    15mm 15mm 600mm +1mm, -0
    20mm 20mm 1000mm +1mm, -0
    45mm 45mm 1200mm +2mm, -0
    60mm 60mm 1500mm +3mm, -0

    Surface Treatment of Molybdenum Bar

    Black Surface – Surface is “as swaged” or “as drawn”. Retaining a coating of processing lubricants and oxides.
    Cleaned Surface – Surface is chemically cleaned to remove all lubricants and oxides.
    Machined or polished Surface – Surface is machined or polished to remove all coating and to achieve precise control.

    Surface Condition of Molybdenum Bar

    No super-fusion, bubble, flaw, layering, necking down, insertion and scratch etc.

    Chemical Composition of Molybdenum Bar

    Impurities ≤(%)
    Fe 0.005
    Ni 0.003
    Al 0.002
    Si 0.002
    Ca 0.002
    Mg 0.002
    P 0.001
    C 0.006
    O 0.01
    N 0.003
