    Rhenium Strip

    Rhenium Strip
  • Rhenium Strip
  • Rhenium Strip
  • Rhenium Strip
  • Rhenium Strip
  • Rhenium Strip

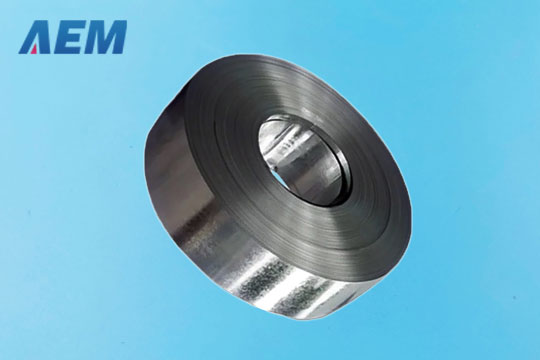

    We are a global supplier of Rhenium (Re) Strip, and we can provide customized Rhenium products. Rhenium (Re) Strip is a silvery metallic strip and manufactured from pure Rhenium (Re) metal.

    Rhenium Strip Properties

    Product Name:  Rhenium Strip
    Material:  Rhenium Metal
    Standard:  Re>99.95%; Re>99.99%
    Size:  Thickness 0.07-1.6mm
    Synonyms: Re foil, Re strip, rhenium foil, rhenium strip.

    Rhenium Strip Applications

    Used in coating, and thin film Chemical Vapor Deposition (CVD), and Physical Vapor Deposition (PVD) processes including Thermal, and Electron Beam (EBeam) Evaporation, Low Temperature Organic Evaporation, Atomic Layer Deposition (ALD), Organometallic, and Chemical Vapor Deposition (MOCVD). Also, there are specific applications in fuel cells and solar energy.

    Rhenium Strip Specification

    Material: Re>99.95%; Re>99.99%

    Dimensions of Rhenium Strip

    Dimension Range, mm
    Thickness 0.07-1.6

    Chemical Composition of Rhenium Strip

    Re 99.99% min(Calculated by the subtraction method, excluding gas elements )
    Maximum trace metallic impurities, analyzed by ICP-MS
    Al 1 ppm Mo 10 ppm
    Ba 1 ppm Na 5 ppm
    Be 1 ppm Ni 5 ppm
    Ca 5 ppm Pb 1 ppm
    Cd 1 ppm Pt 1 ppm
    Co 5 ppm Sb 1 ppm
    Cr 1 ppm Sn 1 ppm
    Cu 1 ppm Ti 5 ppm
    K 5 ppm W 10 ppm
    Mg 1 ppm Zn 1 ppm
    Mn 1 ppm

    Rhenium Strip Package

    Our Rhenium (Re) Strips are carefully packed to prevent damage during storage & transportation. A wooden crate is used if the cargo is overweight.
