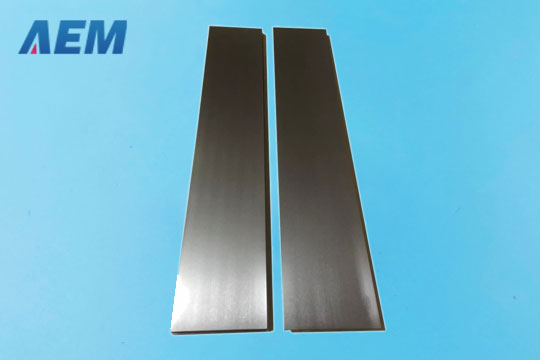

    Niobium Plate

    Niobium Plate
  • Niobium Plate
  • Niobium Plate
  • Niobium Plate

    Material: RO4200-1, RO4210-2A
    Standard: ASTM B392-98
    Purity: Nb >99.9%, >99.95%

    Niobium Plate Applications

    As a high-temperatures and corrosive materials, niobium foil and strip are commonly used in industrial diamond production, deep draw application, chemical industrial, and medical fields. Additionally, niobium is used to make colored jewelry. We can provide bright surface finishing that is perfect for such applications that involve anodizing.

    Niobium Plate Specifications

    Name Thickness (mm) Width (mm) Length (mm)
    Foil 0.03-0.09 30-150 >200
    Sheet 0.1-0.5 30- 400 30-1000
    Plate 0.5-10 30- 400 50-2000

    Chemical Composition of Niobium Plate

    Grade Major Components Maximum Impurities (ppm)
    Nb Ta Si Ni W Mo Ti Fe O C H N
    Nb1 Balance <700 50 50 50 30 20 50 150 40 15 30
    Nb2 Balance <1000 80 40 100 100 40 80 180 60 15 50

    Surface Treatment of Niobium Plate

    Surface can be supplied in a shiny, matte, satin, or as-rolled condition, depends upon thickness and width parameters.

    Heat Treatment of Niobium Plate

    Niobium flat products are rolled and annealed to provide the optimum condition for the desired end-use.
