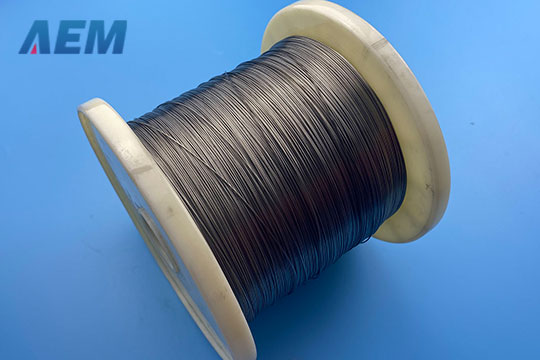

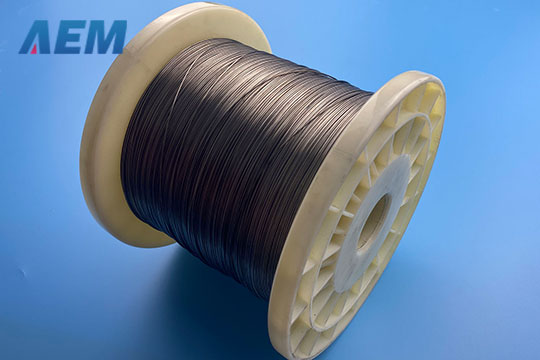

    Zirconium Wire

    Zirconium Wire
  • Zirconium Wire
  • Zirconium Wire
  • Zirconium Wire

    We stock a wide range of zirconium wire and make products to customers’ precise dimensions. Customers’ needs for zirconium round wire, zirconium weld wire can all be met. It can be supplied in required and exact lengths.
    Standard ASTM B550, ASTM B351
    Grade R60702, R60704, R60705
    Technique Hot rolled, cold rolling, annealing
    Straight Dia.: 1.0mm-5.0mm
    Coiled Dia.: 0.05mm-3.0mm
    Length Coils or customers’ requests
    Surface Black, pickled, polished  ( For diameter >1mm )

    Zirconium Wire Testing

    Room temperature tensile
    Bend testing
    Metallography
    Micro-hardness
    Hardness testing

    Chemical Composition of Zirconium Wire

    Grade Element Composition (%) <
    Zr+Hf Hf Fe+Cr Sn H N C Nb O
    R60702 99.2 4.5 0.2 -- 0.005 0.025 0.05 -- 0.16
    R60703 98 4.5 -- -- 0.005 0.025 -- -- --
    R60704 97.5 4.5 0.20~0.40 1.0~2.0 0.005 0.025 0.05 -- 0.18
    R60705 95.5 4.5 0.2 -- 0.005 0.025 0.05 2.0~3.0 0.18
    R60706 95.5 4.5 0.2 -- 0.005 0.025 0.05 2.0~3.0 0.16

    Mechanical Properties of Zirconium Wire

    Material State Rm (≥)/MPa Rp0.2 (≥)/MPa A50mm (≥)/%
    Zirconium 702 Annealed 379 207 16
    (UNS R60702)
    Zirconium 704 Annealed 413 241 14
    (UNS R60704)
    Zirconium 705 Annealed 552 379 16
    (UNS R60705)

    We ensure the highest quality zirconium wire while we also offer the best quality customer service, fast turn-around orders with no limitations, all at a reasonable price. No matter where you are in the world, whether your order is big or small, our pursuit of perfection to every detail does not stop until our customer is satisfied.
