Zirconium Plate & Sheet - Customization Supplier

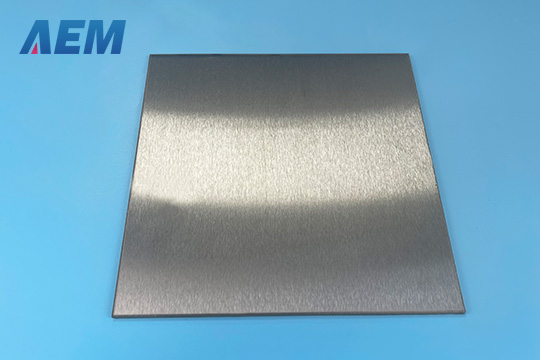

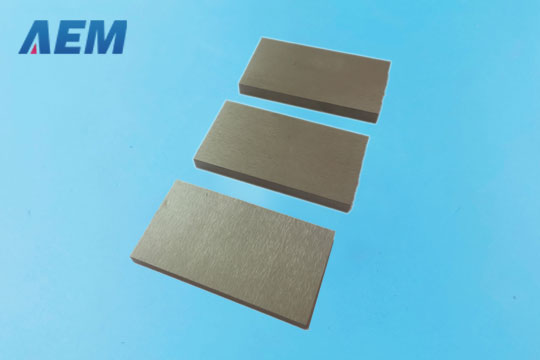

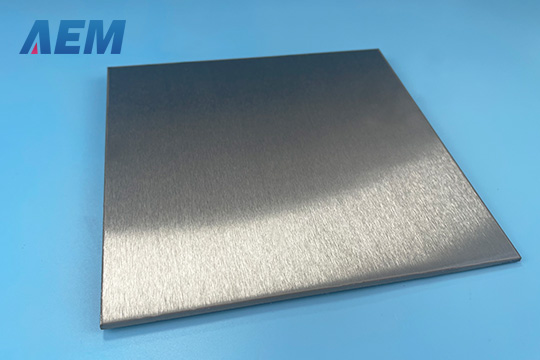

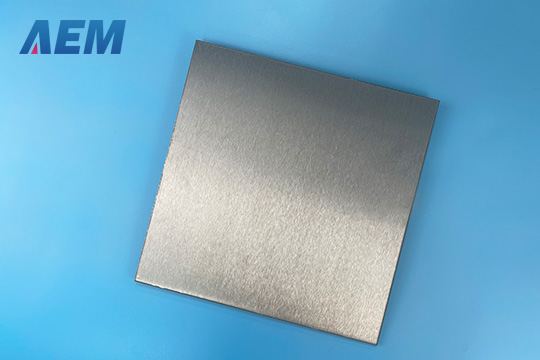

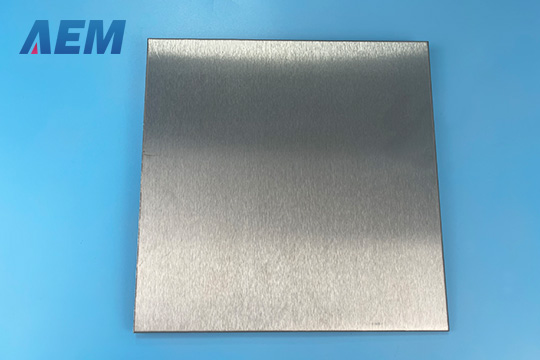

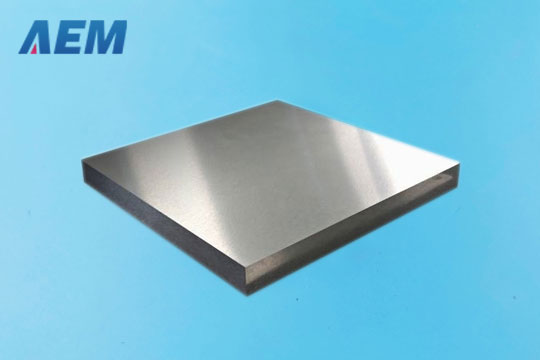

Zirconium Plate - High-Quality Solution for Your Needs

AEM METAL has a fine rolling and annealing technology to supply the perfect Zirconium Plate (Zirconium Sheet).

Our zirconium plates are engineered to international standards and specifications, and they undergo the highest level of quality control. Engineering standards defining the chemical composition, mechanical property, and the tolerance of sheets complement fully independent testing.

Choose AEM METAL, We also have shearing capabilities to meet your specific project needs.

Zirconium Plate Properties

Standard	ASTM B551
Grade	R60702, R60704, R60705
Thickness	0.5mm - 50 mm
Width	10mm - 2500mm
Technology	Hot-rolled, cold-rolled, hot forging, machining
Condition	Annealed (M),cold rolled(Y), hot rolled(R) , quenching(C)
Surface	Chemically cleaning or machined to be bright. Dependent on different thicknesses.

Grade	Element Composition (%) <
Grade	Zr+Hf	Hf	Fe+Cr	Sn	H	N	C	Nb	O
R60702	99.2	4.5	0.2	--	0.005	0.025	0.05	--	0.16
R60704	97.5	4.5	0.20~0.40	1.0~2.0	0.005	0.025	0.05	--	0.18
R60705	95.5	4.5	0.2	--	0.005	0.025	0.05	2.0~3.0	0.18

Why Choose AEM METAL Zirconium Plate-Our Advantages

Premium Quality and Purity

Crafted from high-purity zirconium, our plates offer premium quality, ensuring exceptional performance in challenging industrial environments.

Exceptional Corrosion Resistance and Strength

With unmatched corrosion resistance and superior mechanical strength, our zirconium plates provide long-lasting durability in aggressive chemical settings and heavy-duty applications.

Precision Customization

Tailor our zirconium plates to your exact needs with precision thickness, dimensions, and customizable surface finishes, ensuring seamless integration into diverse projects.

Versatility and Temperature Stability

From extreme heat to cold environments, our zirconium plates exhibit stability across a wide temperature range, making them versatile for various industrial and engineering applications.

Reliability Through Consistency

Experience the assurance of consistent quality across all batches, supported by comprehensive testing and certifications, minimizing the risk of performance variations and ensuring long-term durability.

How to Make Zirconium Plates?

1. Melting and Casting:

Zirconium sponge is melted using electron beam or vacuum arc melting techniques. The molten zirconium is cast into ingots, which serve as the raw material for further processing.

2. Hot Rolling:

The zirconium ingots are heated and passed through hot rolling mills to reduce their thickness and achieve the desired dimensions. This hot rolling process helps in shaping the zirconium into a preliminary form.

3. Intermediate Annealing:

Intermediate annealing involves heating the partially rolled zirconium to remove stresses and improve its workability. This step enhances the material's homogeneity and prepares it for further processing.

4. Cold Rolling:

The zirconium is then cold-rolled to achieve the final desired thickness and dimensions. Cold rolling increases the strength and surface finish of the material.

5. Cutting and Shearing:

The cold-rolled zirconium sheets are cut into specific sizes and shapes using cutting and shearing processes.

6. Surface Finishing:

Zirconium plates can undergo surface finishing processes, such as polishing or pickling, to achieve the desired surface texture and cleanliness.

7. Final Annealing:

The final product may undergo a final annealing process to relieve any residual stresses and optimize the material properties.

Quality Assurance of Zirconium Plate

Visual Inspection

Inspect the entire surface of the zirconium plate for scratches, cracks, pits, or any other visible imperfections. Ensure uniformity in color and finish across the entire surface.

Dimensional Inspection

Use precision measurement tools such as calipers, micrometers, or laser measurement devices to check length, width, and thickness. Compare the measurements against the specified tolerances.

Chemical Composition Analysis

Perform chemical analysis using techniques such as X-ray fluorescence (XRF) or inductively coupled plasma (ICP) spectrometry. Verify that the zirconium content and impurity levels are within specified limits.

Hardness Testing

Use a hardness tester to measure the material's hardness. Ensure that the hardness values fall within the acceptable range specified for zirconium.

Microstructure Analysis

Use an optical microscope to inspect the grain structure and overall microstructure of the zirconium plate. Look for signs of improper heat treatment or other manufacturing issues.

Ultrasonic Testing

Utilize ultrasonic testing equipment to send high-frequency sound waves through the zirconium plate. Analyze the reflected waves to identify internal defects, such as voids or inclusions.

Where Our Zirconium Plate Shines-Diverse Applications

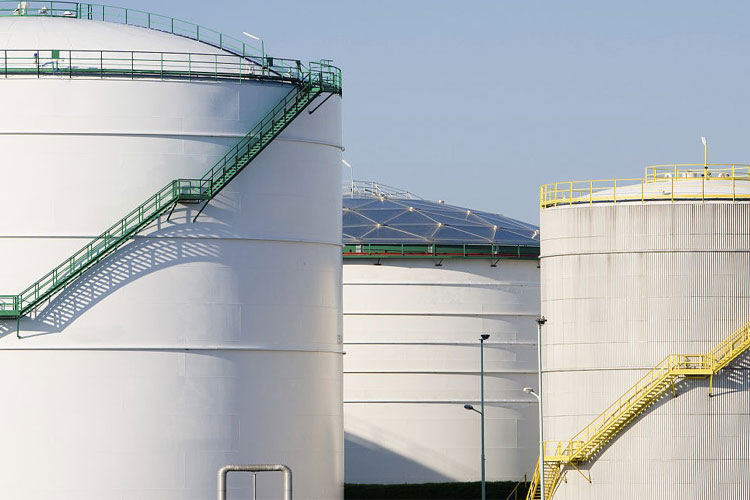

Chemical Processing

Due to its excellent corrosion and oxidation resistance, zirconium plate is widely used in the manufacture of chemical equipment, such as reactors, storage tanks and so on.

Aerospace Industry

Due to its high strength, high hardness and high temperature resistance, zirconium plate is widely used in key components such as structural parts, engine parts and combustion chambers of aerospace vehicles.

Nuclear Reactors

Due to its excellent corrosion resistance and high-temperature stability, zirconium plate is widely used in key components of nuclear reactors such as fuel elements, nuclear fuel cladding and nuclear fuel heat transfer tubes.

Medical Implants

Due to its biocompatibility, non-magnetism and good corrosion resistance, zirconium plate is widely used in the manufacture of artificial joints, dental implants, pacemakers and other medical devices.

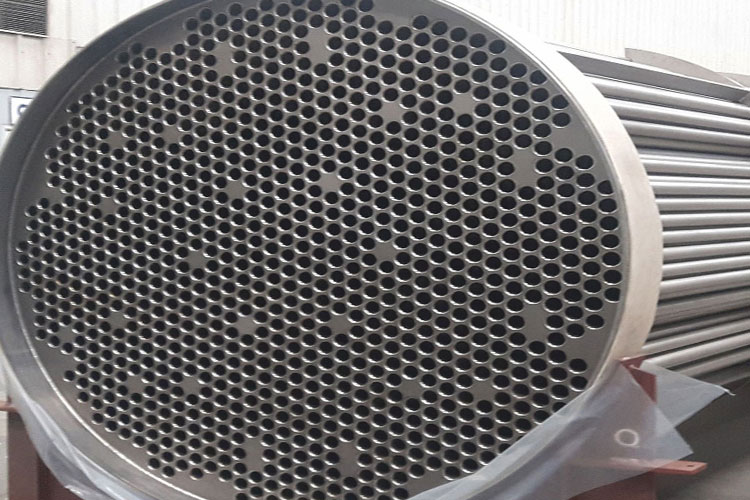

Heat Exchangers

Due to its excellent heat transfer properties, zirconium plate is used in heat exchangers. Zirconium's high thermal conductivity and corrosion resistance make it ideal for applications where heat transfer is required.

Send Inquiry Now

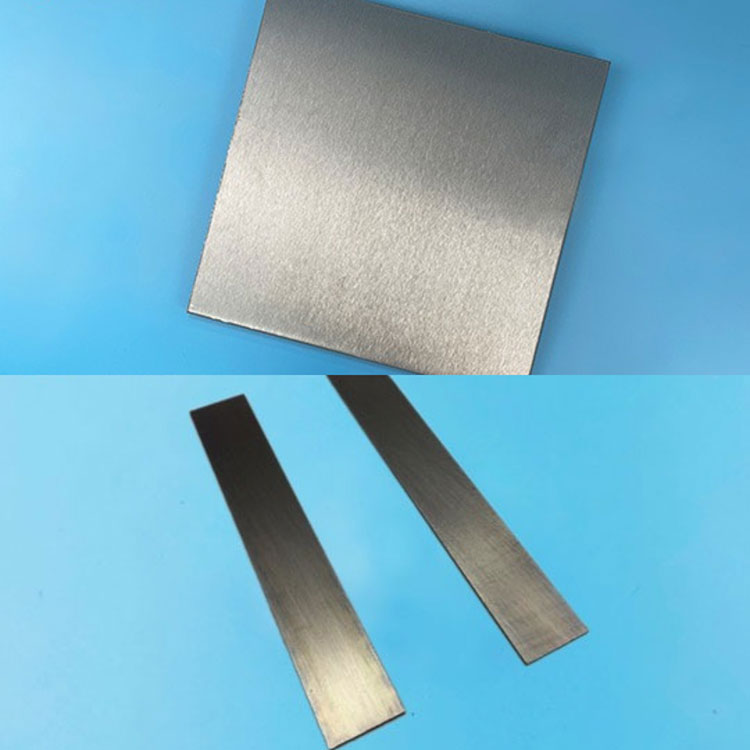

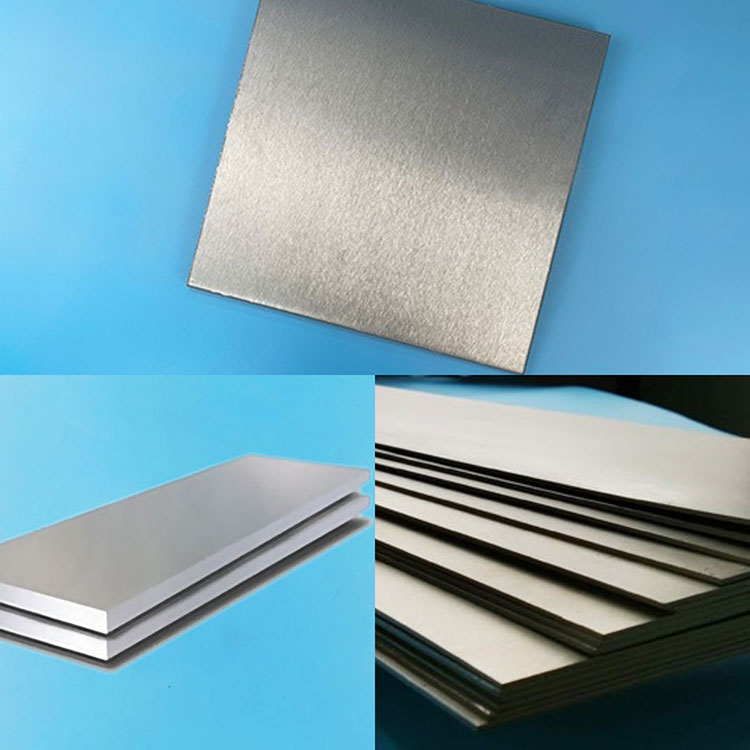

Difference between Zirconium Plate and Zirconium Sheet

The terms "Zirconium Plate" and "Zirconium Sheet" are often used interchangeably, but there can be slight nuances in their meaning.

Thickness:

Zirconium Plate: Generally refers to a flat, broad piece of zirconium with a thickness greater than 6mm. Plates are often associated with thicker sections used in heavy-duty applications.

Zirconium Sheet: Typically implies a thinner piece of zirconium with a thickness less than 6mm. Sheets are commonly used for applications where a lower thickness and lighter weight are crucial.

Applications:

Zirconium Plate: Primarily utilized in heavy industries and applications where mechanical strength and durability are paramount. Examples include structural components in chemical processing equipment or aerospace applications.

Zirconium Sheet: More commonly used in applications where a lighter material is sufficient. This can include thin-walled containers, electronic components, or applications where weight is a critical factor.

In many cases, the choice between "plate" and "sheet" might be influenced by the specific requirements of a project, including factors like strength, weight, and intended use.

How Zirconium Plate Outperforms Its Competitors

Compared with other plates such as tantalum plates, titanium plates, Hastelloy plates and so on, zirconium plate has the following advantages that make it stand out and become the first choice in some industries.

Corrosion Resistant

Zirconium plates, coated with a nanometre-thick passivation layer, are highly resistant to corrosion, including acids, alkalis, and most laboratory solvents. The only common acid that can corrode them is hydrofluoric acid.

Great high-temperature performance

Zirconium plates, with a high melting point of 1,855°C, are superior to most metals in high-temperature conditions. This feature is beneficial in producing zircalloys, enhancing their melting point and making them ideal for use in high-temperature applications.

Strong oxidation resistance

Zirconium plates, with their excellent oxidation resistance, can withstand long-term use in oxidative environments.

Low Neutron Absorption Ability

Zirconium plate, due to its low neutron-capture cross section, shields fuel from nuclear fission, preventing premature or hazardous chain reactions and maintaining control over the process.

Zirconium Plate Package

Wooden case, plywood case, or according to clients' demand.

Frequently Asked Questions About Zirconium Plate

Are there any special considerations for the storage and handling of zirconium plates?

Zirconium plates should be stored in a dry and controlled environment to prevent corrosion. Proper handling practices, such as avoiding contact with abrasive materials, are recommended to maintain surface integrity.
Can zirconium plates be used in conjunction with other materials in composite structures?

Yes, zirconium plates can be integrated into composite structures with other materials to achieve specific performance characteristics.
Are zirconium plates resistant to pitting and crevice corrosion?

Yes, zirconium's corrosion resistance extends to pitting and crevice corrosion, making it a reliable choice for applications where these forms of corrosion are concerns.
How does the purity of zirconium impact the performance of the plates?

Higher purity zirconium plates exhibit enhanced corrosion resistance and mechanical properties, making them suitable for critical applications in industries such as pharmaceuticals and electronics.
How does the thickness of zirconium plates impact their performance in different applications?

The thickness of zirconium plates can influence factors like mechanical strength and corrosion resistance. We can provide guidance on selecting the optimal thickness for your specific application.
What is the typical lifespan of zirconium plates in industrial applications, and how does it contribute to overall project longevity?

The lifespan of zirconium plates varies based on factors like application conditions and maintenance. Their corrosion resistance and durability contribute significantly to the overall longevity of projects.
How can I ensure that the zirconium plates I receive meet the specified quality standards and certifications?

Our zirconium plates comply with globally recognized standards such as ASTM. We also follow the ISO quality management system to ensure the quality of zirconium plates.
What level of technical support and service can I expect from your team?

Our support team is dedicated to assisting you throughout the entire process, from selecting the right zirconium plates to providing after-sales service.
What shipping methods do you use to deliver products?

We typically opt for UPS, DHL, or FedEx. However, for shipments over 100 kg, sea transportation is an option. Feel free to specify your preferred shipping method.
How long does it usually take for goods to be delivered?

Delivery typically takes 3-4 weeks, subject to the product's complexity, quantity, and order volume. Please also understand that if transportation volume accumulates during holidays, the delivery time may be slower.
