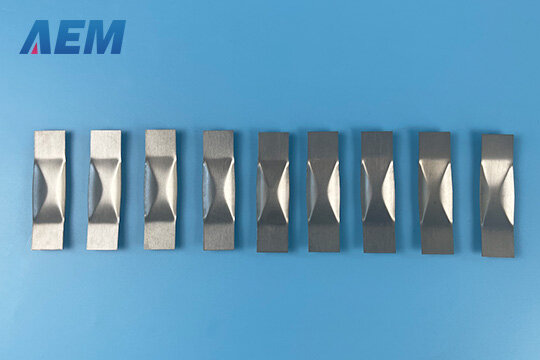

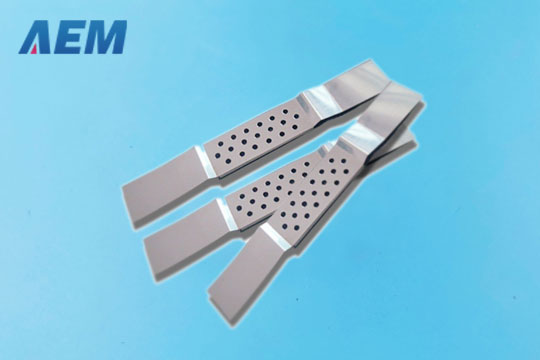

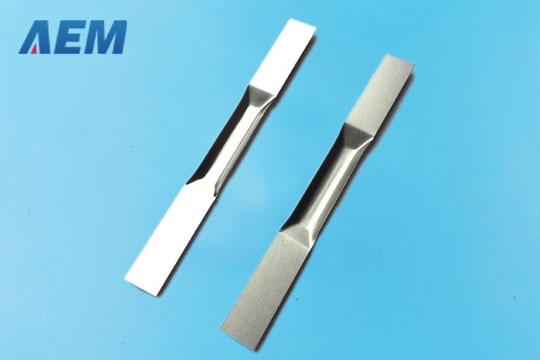

    Tungsten Boat

    Tungsten Boat
  • Tungsten Boat
  • Tungsten Boat
  • Tungsten Boat
  • Tungsten Boat
  • Tungsten Boat

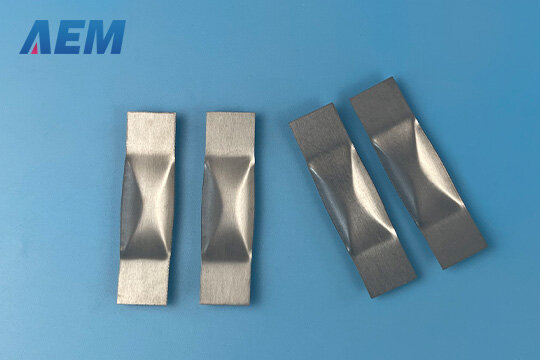

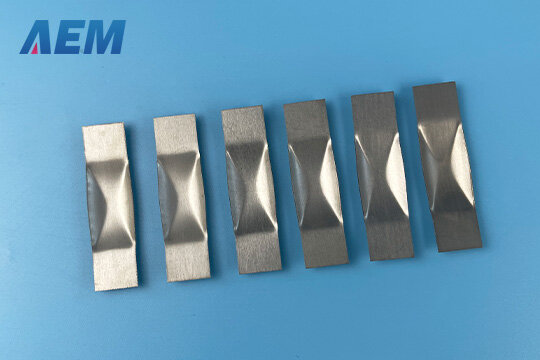

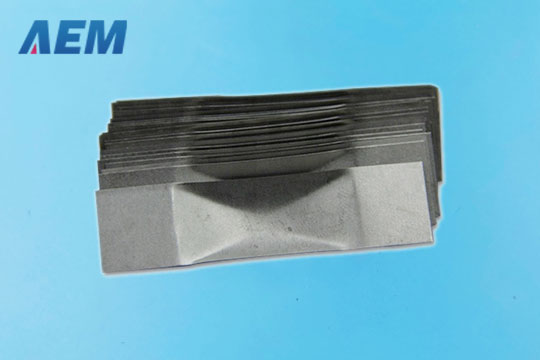

    Tungsten boat is made of Tungsten sheet through a process of cutting, bending, welding, and riveting. We can manufacture customized tungsten boats according to customers’ requirements. AEM can provide bending, folding, riveting, pressing, and welding tungsten boats according to our customer’s needs. Our special production line manufactures tungsten boats and elaborately made from tungsten plates or sheets with high-quality. Our tungsten boat has high purity, high-density, varied types, stable performance, and longer service life, for helping you save cost.

    Shapes of Evaporation Boats

    1. Trough Boats

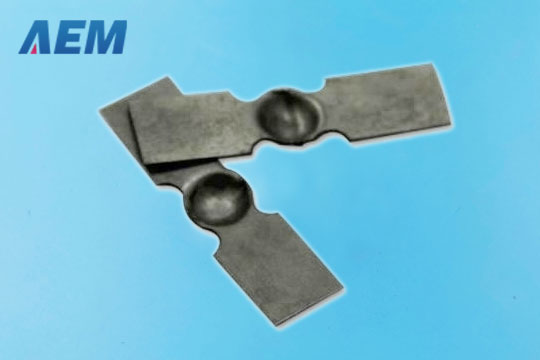

    2. Dimple Boats
    3. Notched Boats
    4. Canoe Boats
    5. Holed/ Covered Boats
    6. Slab/ Flat/ Dish Boats
    7. Well Boats
    8. Tube Heater/ Crucible Heater Boats
    9. Elongated Dimple Boats

    Dimensions of Evaporation Boats

    Type Length
    (mm)
    Width
    (mm)
    Length or Diameter  of
    the Recess (mm)
    Depth of
    the Recess (mm)
    Thickness
    (mm)
    Volume
    (cc)

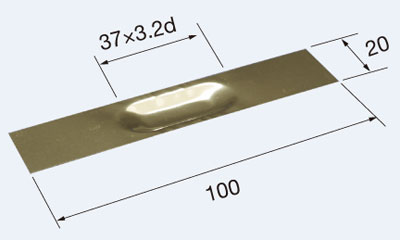

    AEMEB-1 100 mm 20 mm 37 mm 3.2 mm 0.1 mm, 0.2 mm , 0.3 mm 0.62 cc

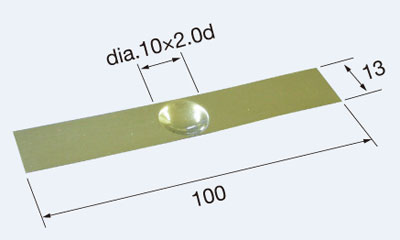

    AEMEB-2 100 mm 13 mm 10 mm 2.0 mm 0.1 mm, 0.2 mm , 0.3 mm 0.07 cc
    AEMEB-3 100 mm 17 mm 15 mm 2.9 mm 0.1 mm, 0.2 mm , 0.3 mm 0.23 cc
    AEMEB-4 102 mm 15 mm 40 mm 2.5 mm 0.1 mm, 0.2 mm , 0.3 mm 0.83 cc
    AEMEB-5 100 mm 16 mm 50 mm 3.8 mm 0.1 mm, 0.2 mm , 0.3 mm 2.04 cc
    AEMEB-6 100 mm 13 mm 18 mm 2.0 mm 0.1 mm, 0.2 mm , 0.3 mm 11.2 cc
    AEMEB-7 90 mm 14 mm 10 mm 2.0 mm 0.1 mm, 0.2 mm , 0.3 mm 0.07 cc
    AEMEB-8 100 mm 15 mm 40 mm 2.3 mm 0.1 mm, 0.2 mm , 0.3 mm 0.74 cc

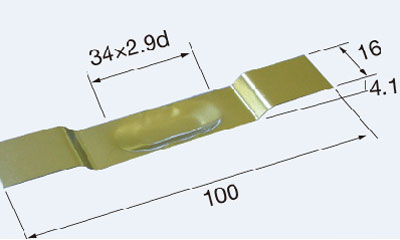

    AEMEB-9 100 mm 16 mm 34 mm 2.9 mm 0.1 mm, 0.2 mm , 0.3 mm 0.61 cc
    AEMEB-10 100 mm 17 mm 15 mm 2.5 mm 0.1 mm, 0.2 mm , 0.3 mm 0.2 cc

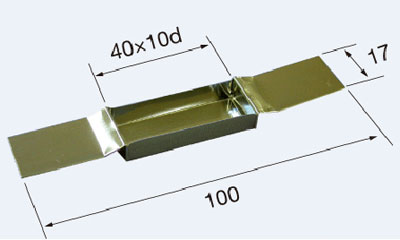

    AEMEB-11 100 mm 17 mm 40 mm 10 mm 0.1 mm, 0.2 mm , 0.3 mm 5.79 cc

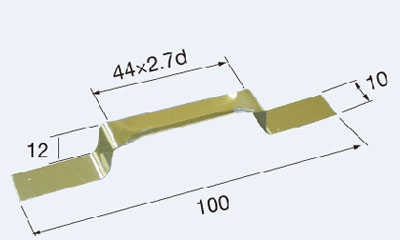

    AEMEB-12 100 mm 10 mm 44 mm 2.7 mm 0.1 mm, 0.2 mm , 0.3 mm 0.44 cc
    The customized size can be porvided accroding to customer's drawings.

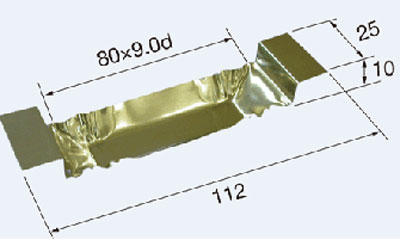

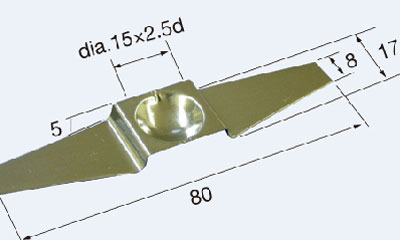

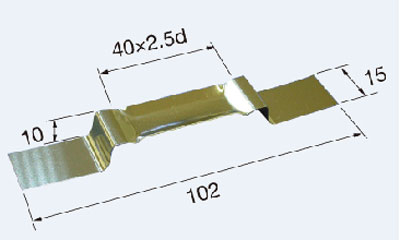

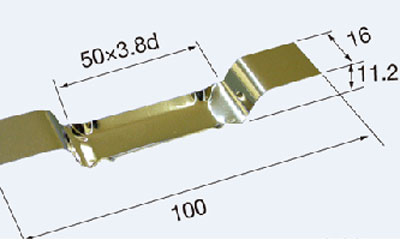

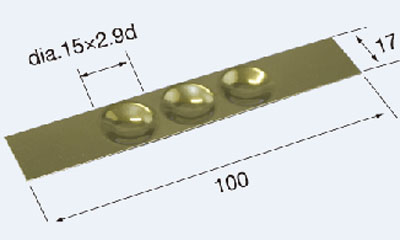

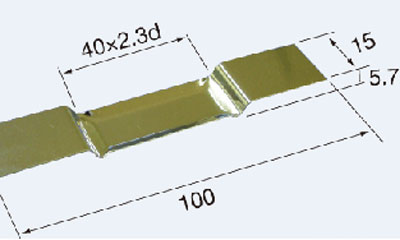

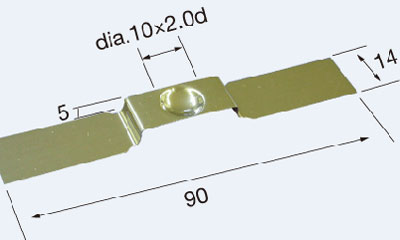

    Drawings of Evaporation Boats


    AEMEB-1   AEMEB-2   AEMEB-3   AEMEB-4

    AEMEB-5   AEMEB-6   AEMEB-7   AEMEB-8

    AEMEB-9   AEMEB-10   AEMEB-11   AEMEB-12

    Tungsten Boat Properties

    Purity: >99.95%
    Density: >19.1g/cc
    W content: ≥99.95%
    Technique: Extruding, forging, rolling, machining, and sintering

    Tungsten Boat Application

    Tungsten boat is widely used in military industry, electronic industry, and light industry. Besides, it can also be applied in metalizing, electron beam spraying, and the vacuum coating industry.

    Tungsten Boat Specification

    Length: 50mm-1000mm
    Width: 10mm-500mm
    Height: 10mm-300mm
    Wall thickness: 0.3mm-10mm

    Related Products of Tungsten Boat

    Tungsten Powder Tungsten Carbide Powder Tungsten Oxide Powder Tungsten Copper Alloy Silver Tungsten Alloy
    Tungsten Bar Tungsten Boat Tungsten Crucible Tungsten Electrode Tungsten Heating Elements
    Tungsten Heavy Alloy Tungsten Plate Tungsten Rod Tungsten Sheet Tungsten Sputtering Target
    Tungsten Tube Tungsten Wire Tungsten Rhenium Alloy
