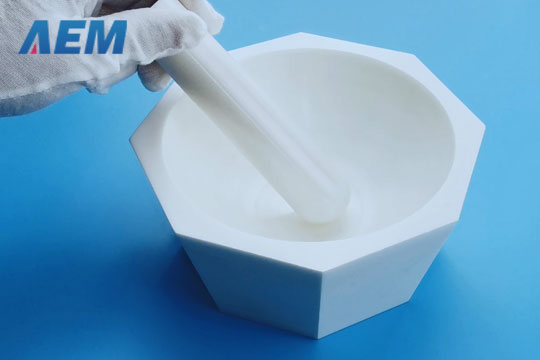

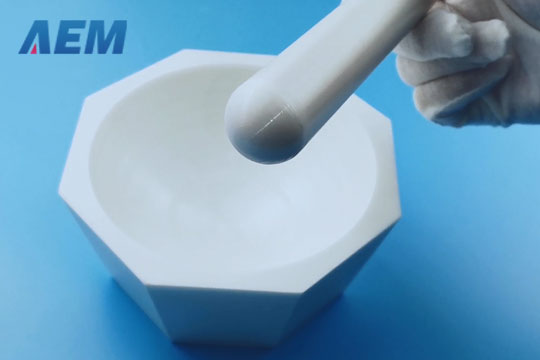

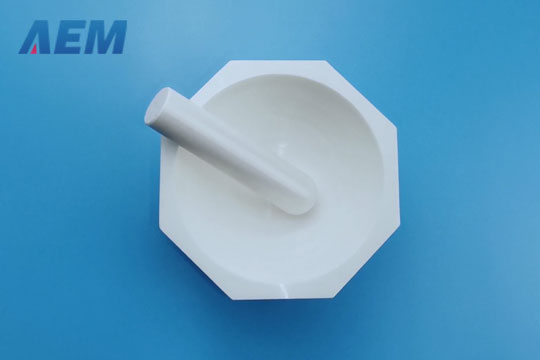

    Zirconia Mortar and Pestle

    Zirconia Mortar and Pestle
  • Zirconia Mortar and Pestle
  • Zirconia Mortar and Pestle
  • Zirconia Mortar and Pestle
  • Zirconia Mortar and Pestle
  • Zirconia Mortar and Pestle


    Zirconia's high-density, low porosity, inertness, toughness, and super hardness make it the perfect material for making mortars and pestles.
    Being approximately 10 on the Mohs hardness scale, zirconia mortar and pestles can grind materials too hard for agate, alumina, and porcelain. Our high wear-resistant mortar and pestle effectively eliminates product contamination and is chemically inert to all acids.
    These special features make zirconia the most versatile, best-suited mortar, pestle material for sensitive biological, and other critical applications requiring ultra-low contamination and acid resistance.

    Zirconia Mortar and Pestle List

    Zirconia Mortar 60 x 50 x 20 w/ Pestle
    Zirconia Mortar 80 x 65 x 30 w/ Pestle
    Zirconia Mortar100x 80 x 37 w/ Pestle
    Replacement Zirconia Pestle

    Zirconia Mortar and Pestle Properties

    Composition (wt%) 94.9% ZrO2 + 5.1%Y2O3
    Bulk Density (kg/L) 3.5
    Specific Density (g/cm3) > 6.0
    Hardness(HV) (GPa)  > 10
    Modulus of Elasticity (GPa) 200
    Thermal Conductivity (W/m.K) 3
    Thermal Expansion Coefficient (10x10-6/k (20 to 400)) 9.6
    Crushing Load ( KN) > 15

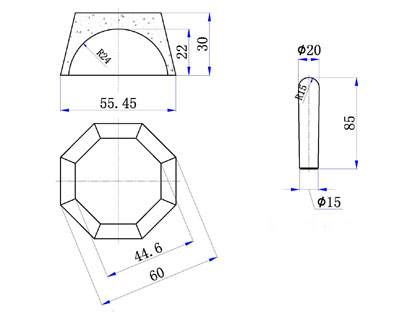

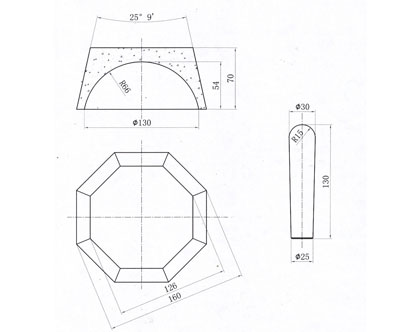

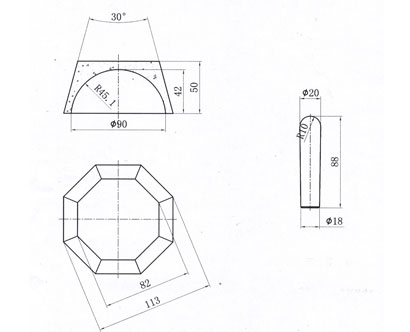

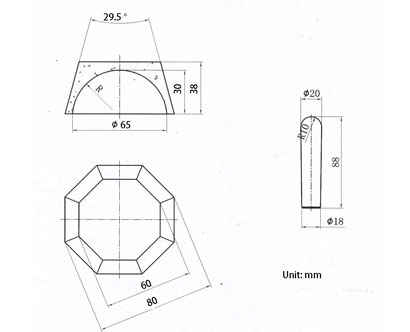

    Zirconia Mortar & Pestle Specifications

    Name Zirconia Mortar/ Pestle Name Zirconia Mortar/ Pestle
    Model YSZ-M060 Model YSZ-M080
    Outer Diameter (OD) 60mm Outer Diameter (OD) 80mm
    Inner Diameter (ID) 48mm Inner Diameter (ID) 65mm
    Depth 22mm Depth 30mm
    Name Zirconia Mortar/ Pestle Name Zirconia Mortar/ Pestle
    Model YSZ-M113 Model YSZ-M160
    Outer Diameter(OD) 113mm  Outer Diameter(OD) 160mm
    Inner Diameter(ID) 90mm  Inner Diameter(ID) 130mm
    Depth 42mm  Depth 54mm

    Zirconia Mortar and Pestle Applications

    1. Hard Materials
    Zirconia's superior hardness allows it to grind tough ceramics such as aluminum oxide, and silicon oxide.
    2. Low Contamination Materials
    When absolutely no contamination is tolerable, such as in ultra-pure organic, nanomaterial, and forensic applications, Zirconia is your best choice.
    3. HF Applications
    Zirconia's inertness to HF and other acids make it superior to agate, and other materials.
    4. High-temperature Applications
    Zirconia's physical and thermal shock resistance lends it well to high-temperature applications.
