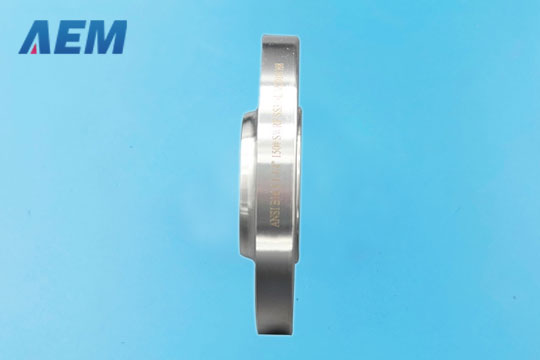

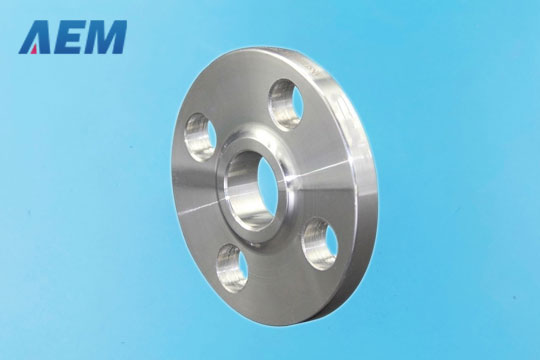

Titanium Flange
We manage inventory and supply of titanium flange, like slip-on, blind, weld becks, orifice, and lap joint flanges. Custom flanges are available through our machine shop.
Sealing Surface |
FF, RF, LJ, TG, FM, and R.T.J. etc |
Process |
Push, press, forge, cast, etc |
Diameter Range |
DN15-DN2000 |
Standard |
ASME,JIS, DIN , HG, etc |
Size |
DN10~DN2000, customized size as drawing |
Pressure Range |
PN6 – PN150 |
Pressure Rate |
2000LB, 3000LB, 6000LB, 9000LB |
Other |
Special design is available |
Titanium Flange Type
WN/Welding neck flange. SO/Slip on flange
Line spade, and spacer, paddle blind, paddle spacer
PL /Plate flange. BL/Blind flange
Th/Threaded flange. SW/Socket welding flange
Orifice plate, pipe plate, bleed ring, plate flange
Orifice flange, reducing flange. API flange
Integral/compact flange, spectacle blind
LF/SE(lapped flange/stub end), LWN/Long welding neck flange
Titanium Flange Remarks
Other materials and drawings are available as well.
Chemical Composition of Titanium Flange (Nominal %)
|
N |
C |
H |
Fe |
O |
Al |
V |
Pa |
Mo |
Ni |
Ti |
Gr 1 |
0.03 |
0.08 |
0.015 |
0.2 |
0.18 |
/ |
/ |
/ |
/ |
/ |
bal |
Gr 2 |
0.03 |
0.08 |
0.015 |
0.3 |
0.25 |
/ |
/ |
/ |
/ |
/ |
bal |
Gr 3 |
0.05 |
0.08 |
0.015 |
0.3 |
0.35 |
/ |
/ |
/ |
/ |
/ |
bal |
Gr 4 |
0.05 |
0.08 |
0.015 |
0.5 |
0.4 |
/ |
/ |
/ |
/ |
/ |
|
Gr 5 |
0.05 |
0.08 |
0.015 |
0.4 |
0.2 |
5.5~6.75 |
3.5~4.5 |
/ |
/ |
/ |
bal |
Gr 7 |
0.03 |
0.08 |
0.015 |
0.3 |
0.25 |
/ |
/ |
0.12~0.25 |
/ |
/ |
bal |
Gr 9 |
0.03 |
0.08 |
0.015 |
0.25 |
0.15 |
2.5~3.5 |
2.0~3.0 |
/ |
/ |
/ |
bal |
Gr12 |
0.03 |
0.08 |
0.015 |
0.3 |
0.25 |
/ |
/ |
/ |
0.2~0.4 |
0.6~0.9 |
bal |
Titanium Flange Testing
Tensile strength
Yield strength
Fracture toughness
Liquid penetrant
Ultrasonic
Magnetic particle
