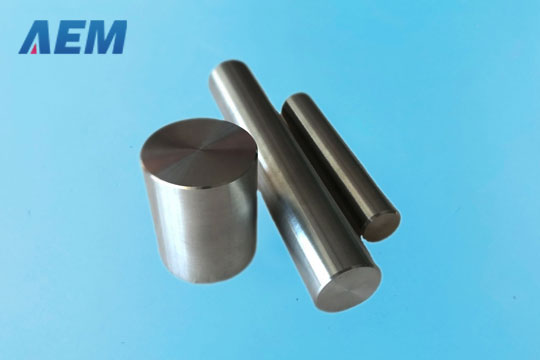

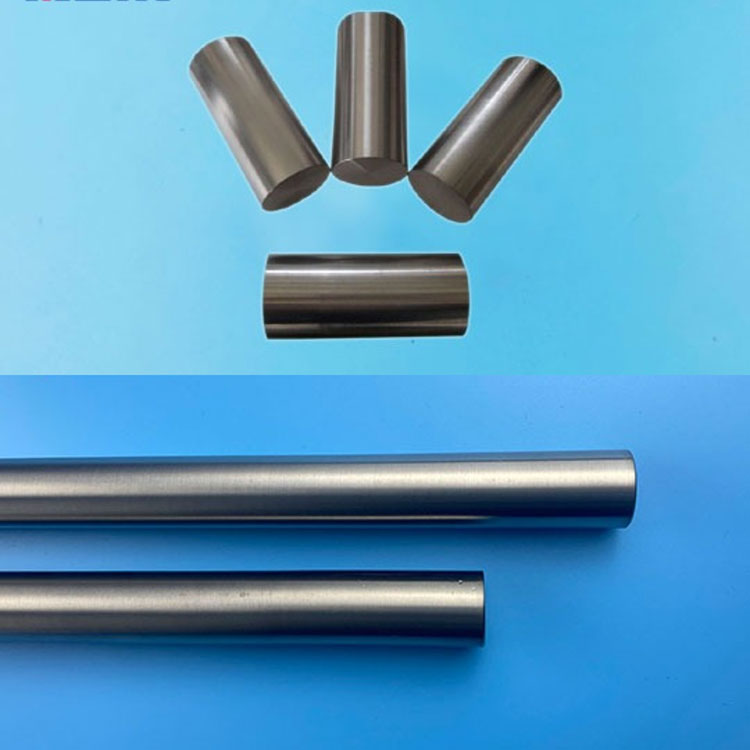

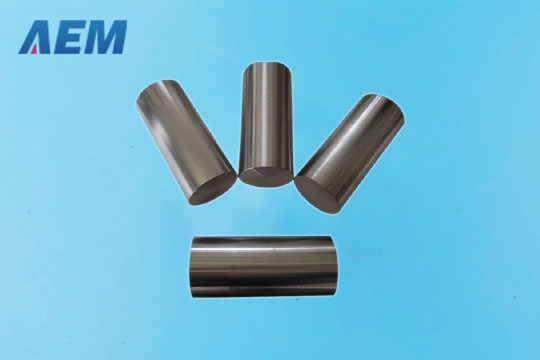

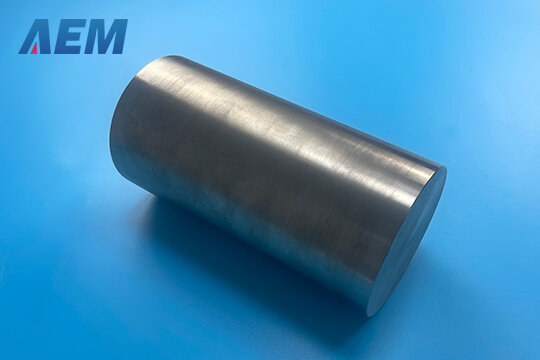

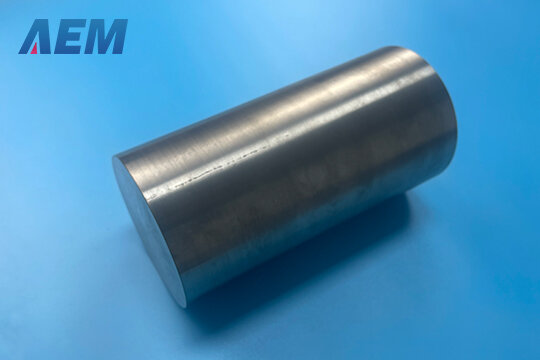

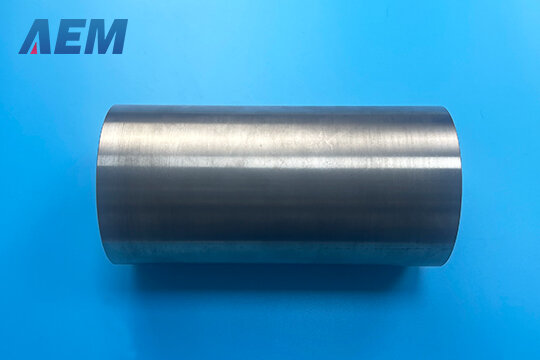

Zirconium Bar: Engineered Excellence for Superior Performance

Welcome to our Zirconium Bar showcase at AEM METAL—a hub of information on the exceptional properties and applications of this incredible material. Our Zirconium Bar, proudly crafted by AEM METAL, is a high-strength metal designed for reliability and optimal performance.

Dive into the world of AEM METAL's Zirconium Bar as we highlight its enduring qualities, exploring how it stands out in diverse industries. Discover why this metal is a game-changer, offering not just strength, but a tailored solution for your projects. Join us on this journey through the possibilities of AEM METAL's Zirconium Bar.

Specifications of Zirconium Bar

Size	Dia.: 5 mm - 400 mm
Material	R60702, R60704, R60705
Standard	ASTM B550, ASTM B351
Surface	Black, pickling, sand-blasting, polished
Condition	Cold rolled(Y), hot rolled(R), annealed (M), quenching (C)
Shape	Square bar, round bar, hexagonal bar, etc.

Chemical Composition of Zirconium Bar

Grade	Element Composition (%) <
Grade	Zr+Hf	Hf	Fe+Cr	Sn	H	N	C	Nb	O
R60702	99.2	4.5	0.2	--	0.005	0.025	0.05	--	0.16
R60704	97.5	4.5	0.20~0.40	1.0~2.0	0.005	0.025	0.05	--	0.18
R60705	95.5	4.5	0.2	--	0.005	0.025	0.05	2.0~3.0	0.18

Mechanical Properties of Zirconium Bar

Material	State	Rm (≥)/MPa	Rp0.2 (≥)/MPa	A50mm (≥)/%
Zirconium 702	Annealed	379	207	16
(UNS R60702)	Annealed	379	207	16
Zirconium 704	Annealed	413	241	14
(UNS R60704)	Annealed	413	241	14
Zirconium 705	Annealed	552	379	16
(UNS R60705)	Annealed	552	379	16

Customize Your Zirconium Bar

At AEM METAL, we take pride in offering a personalized touch to our Zirconium Bar solutions. Our commitment to meeting customer requirements sets us apart. Whether you have specific dimensions, specifications, or other custom needs, we tailor our Zirconium Bar to align seamlessly with your project demands. Your satisfaction is our priority, and our dedicated team works closely with you to ensure the final product meets your expectations.

AEM METAL also consistently upholds industry standards. Our Zirconium Bar customization services adhere to the highest quality and safety benchmarks, ensuring that your tailored solutions not only meet your unique requirements but also comply with the rigorous standards set by various industries. Trust AEM METAL for Zirconium Bars that are not just customized but also engineered to excel in the most demanding industry environments.

Why Choose AEM METAL Zirconium Bar-Our Advantages

Unrivaled Strength

Our Zirconium Bars are engineered for superior strength, making them a reliable choice for demanding applications where durability is crucial.

Heat Resistance

Engineered to withstand high temperature, our Zirconium Bars maintain their structural integrity even in extreme heat, ensuring stability and reliability in challenging conditions.

Enduring Durability

Crafted with precision and high-quality materials, our Zirconium Bars boast enduring durability, providing a long-lasting and reliable foundation for your projects.

Precision Machining

AEM METAL employs cutting-edge precision machining techniques to craft Zirconium Bars with exacting specifications, guaranteeing a product of outstanding quality.

Innovative Engineering

Backed by advanced engineering, our Zirconium Bars represent the forefront of metal technology, delivering innovative solutions for your projects.

How to Make Zirconium Bar

Melting and Casting:

The purified zirconium metal is melted in a controlled environment. Once molten, it is cast into ingots or billets using molds. This step establishes the initial form of the Zirconium Bars.

Hot Working:

The cast ingots may undergo hot working processes such as forging or rolling. These processes help shape the zirconium into the desired dimensions, enhancing its mechanical properties and aligning it with specific applications.

Heat Treatment:

Heat treatment is applied to the zirconium bars to optimize their mechanical properties. This controlled process involves heating and cooling to achieve the desired hardness, strength, and microstructure.

Final Finishing:

The finished Zirconium Bars undergo final finishing processes, which may include polishing or coating for specific applications.

Quality Test of Zirconium Bar

Surface Finish Inspection

Surface finish inspection assesses the quality of the zirconium bar's surface. It involves checking for defects, roughness, or irregularities that could impact the bar's performance or aesthetics.

Dimensional Accuracy

Precise dimensional measurements verify that the zirconium bar conforms to the specified size and shape requirements. This ensures it fits its intended use and integrates easily.

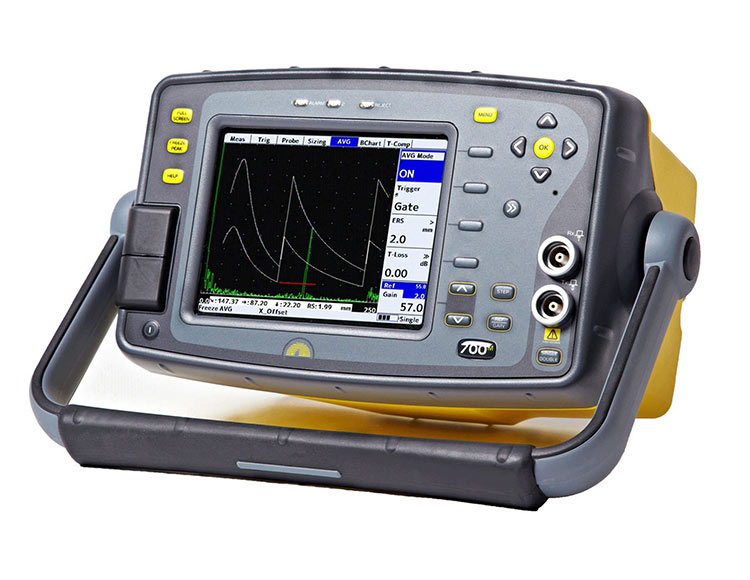

Ultrasonic Testing

Ultrasonic waves are used to detect internal defects, voids, or inconsistencies in the zirconium bar. This non-destructive method provides valuable information about the material's overall quality.

Chemical Composition

Analyzing the chemical composition verifies the purity of the zirconium bar. It ensures that the alloy composition aligns with the specified standards and meets the required criteria for the intended application.

Mechanical Properties

Testing mechanical properties includes assessing factors like tensile strength, yield strength, and elongation. These tests help determine the structural integrity and performance characteristics of the zirconium bar under different stress conditions.

Microstructure Examination

Microscopic examination of the zirconium bar's structure reveals details about its grain size, uniformity, and overall microstructure. A fine and consistent microstructure contributes to enhanced mechanical properties.

Hardness Testing

Measuring the hardness of the zirconium bar is crucial for evaluating its resistance to deformation and wear. Common hardness tests include Rockwell or Vickers hardness tests.

Where Our Zirconium Bar Shines-Diverse Applications

Aerospace

Zirconium bars are utilized in aerospace applications for components that require high strength, corrosion resistance, and lightweight design.

Chemical Processing

Zirconium's excellent corrosion resistance makes it valuable in chemical processing industries, where it is used in pumps, valves, and other equipment that handle corrosive substances.

Nuclear Power

Zirconium is a key material in the nuclear industry, particularly in the production of fuel rods for nuclear reactors due to its low thermal neutron absorption and corrosion resistance.

Medical

Zirconium is employed in medical applications, including the production of implants and devices, thanks to its biocompatibility and resistance to corrosion in physiological environments.

Oil and Gas

Zirconium bars are used in the oil and gas industry for components exposed to corrosive conditions, such as downhole tools and equipment used in offshore environments.

Electronics

Zirconium is used in electronics for its favorable electrical properties. Zirconium bars may be used in the production of certain electronic components.

Send Inquiry Now

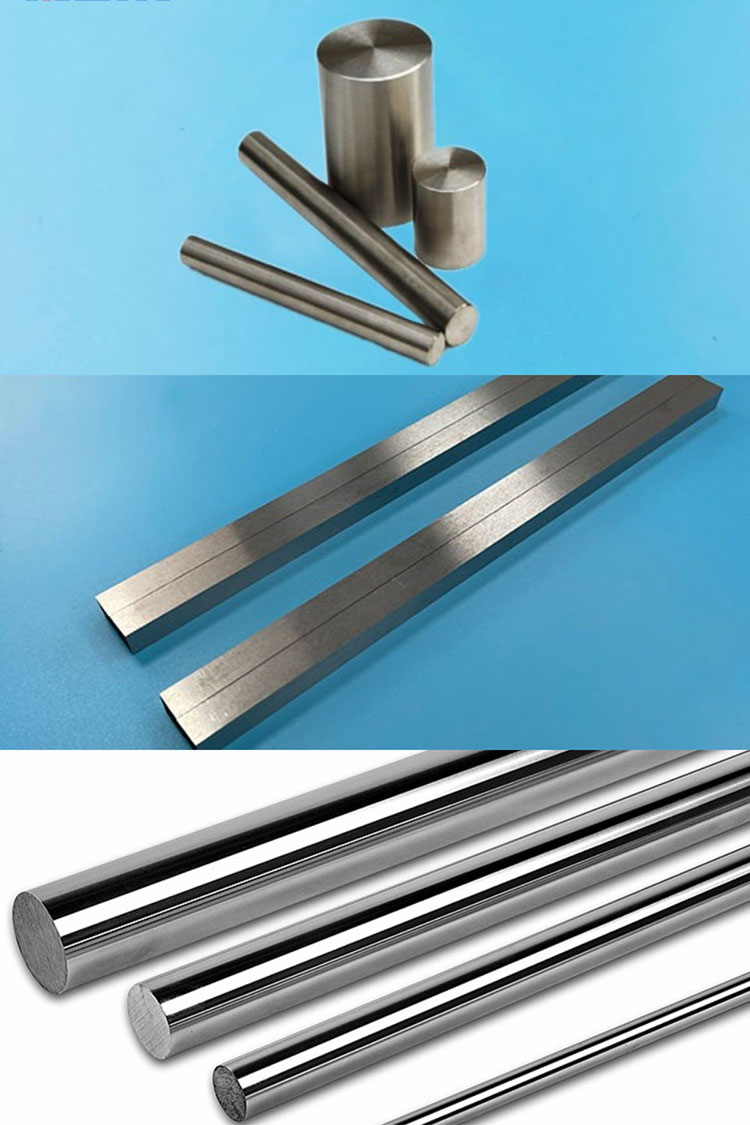

The Difference between Zirconium Bar and Zirconium Rod

The terms "zirconium bar" and "zirconium rod" are often used interchangeably, and their meanings can vary slightly depending on the context and industry standards. Generally, the terms refer to cylindrical forms of zirconium with similar applications and properties. However, there might be subtle differences in their dimensions or manufacturing processes based on industry norms or specific applications.

In some cases:

Zirconium Bar:

① The term "bar" is often associated with a long, solid, and straight structure.
② Zirconium bars may be characterized by their larger diameters and lengths.
③ Commonly used in industrial and engineering applications where strength and durability are crucial.

Zirconium Rod:

① The term "rod" typically implies a slender, elongated structure.
② Zirconium rods may have smaller diameters compared to bars and can be longer or shorter.
③ Rods may find applications in precision instruments, research, or situations where a more slender form is required.

How Zirconium Bar Outperforms Its Competitors

Two potential competitors of zirconium bars are titanium bars and stainless steel bars. Here are some ways in which zirconium bars outperform these alternatives:

Corrosion Resistance:

Zirconium Bar: Exceptional corrosion resistance, especially in harsh chemical environments and at elevated temperatures.

Titanium Bar: Good corrosion resistance, but zirconium bar surpasses it in resisting certain corrosive media, making it preferred in some chemical processing applications.

Stainless Steel Bar: Corrosion-resistant but may not withstand aggressive chemical environments as well as zirconium bar.

Biocompatibility:

Zirconium Bar: High biocompatibility, making it suitable for medical implants and devices.

Titanium Bar: Also biocompatible, commonly used in medical applications, but zirconium bar may have advantages in specific medical scenarios.

Stainless Steel Bar: Generally not as biocompatible as zirconium bar and titanium bar, limiting its use in medical implants.

Weight and Density:

Zirconium Bar: Moderate density, providing a balance between strength and weight.

Titanium Bar: Lighter than zirconium bar, making it suitable for applications where weight is a critical factor.

Stainless Steel Bar: Heavier compared to zirconium bar and titanium bar, which may impact applications requiring lightweight materials.

High-Temperature Stability:

Zirconium Bar: Maintains structural integrity at high temperatures, making it suitable for aerospace and high-temperature industrial applications.

Titanium Bar: Also exhibits high-temperature stability but may not surpass zirconium bar in certain extreme conditions.

Stainless Steel Bar: Limited high-temperature resistance compared to zirconium bar and titanium bar.

Frequently Asked Questions About Zirconium Bar

Are there any size limitations for zirconium bars, or can they be manufactured in various dimensions?

Zirconium bars can be manufactured in various dimensions, and AEM METAL provides flexibility in sizes from 5mm to 400mm to accommodate the specific needs of different applications.
What certifications or standards do zirconium bars adhere to, and are they compliant with industry regulations?

Zirconium bars from AEM METAL adhere to industry standards and have certifications such as ASTM, ensuring compliance with industry regulations.
What is the typical lifespan of zirconium bars, and do they require any specific maintenance or care over time?

Zirconium bars, with their corrosion resistance and durability, often have a long lifespan. Regular maintenance may not be required, but adherence to proper handling and storage guidelines is essential to preserve their properties.
Can zirconium bars be used in applications involving exposure to strong acids or alkalis, and what precautions should be taken in such cases?

Zirconium bars have excellent corrosion resistance in strong acids and alkalis. Precautions may involve considering the specific concentration, temperature, and duration of exposure.
Can zirconium bars be heat-treated to enhance specific properties, and what is the impact on their overall performance?

Zirconium bars can undergo heat treatment to modify certain properties. The impact on performance depends on the specific treatment and its intended purpose.
Can zirconium bars be coated or plated for additional protection, and what types of coatings are compatible with the material?

Zirconium bars can be coated or plated for enhanced protection. Various coatings, including passivation or specialized coatings, can be applied based on the application's requirements.
Do zirconium bars have any magnetic properties, and how does their magnetism compare to other metals?

Zirconium is non-magnetic, distinguishing it from materials with magnetic properties. This property can be advantageous in applications where magnetism is a concern.
What kind of support or technical assistance is available for customers using zirconium bars?

We provide comprehensive technical support, including assistance with material selection, customization guidance, and post-purchase support to ensure customers achieve optimal results with zirconium bars.
What shipping methods do you use to deliver products?

We typically opt for UPS, DHL, or FedEx. However, for shipments over 100 kg, sea transportation is an option. Feel free to specify your preferred shipping method.
How long does it usually take for goods to be delivered?

Delivery typically takes 3-4 weeks, subject to the product's complexity, quantity, and order volume. Please also understand that if transportation volume accumulates during holidays, the delivery time may be slower.
