    Cemented Carbide

    Cemented Carbide
  • Cemented Carbide
  • Cemented Carbide

    AEM is a kind of powder metallurgy product, which is mainly composed of high hardness refractory metal carbide(WC or TiC) micro powder and sintered in vacuum sintering furnace or HIP sintering furnace. The metal element cobalt (CO), nickel (Ni), molybdenum (Mo) are used as binder.

    Within the field of engineering materials, cemented carbides play a crucial role as they combine high hardness and high toughness, and they constitute the most versatile hard materials group for engineering and tooling applications. Scientists and engineers are working on adding different functional micro metals to the powder formula of cemented carbide to make this material even more powerful.

    AEM focuses its business mainly on tungsten carbide(WC) products. WC with binder Cobalt is the most general combination that can fulfill most applications, and Nickel can be applied to situations when the magnetism is not allowed to exist in.


    Grade   Grain Size Co
    Wt %
    Density
    g/cm3
    HV30 HRA TRS
    N/mm2
    KIC
    Mpa•m0.5
    XN108 K10-K20 0.2 8 14.46 2100 94.6 4500 10.5
    XU30 K30-K40 0.4 12 14.1 1750 92.5 4000 15.2
    YF06 K05-K10 0.6 6 14.9 1850 93.1 3800 9.2
    XF20S K20-K30 0.6 10 14.37 1600 91.5 4000 15.4
    XF20T K20-K30 0.6 10 14.45 1650 91.7 3800 15.4
    XF30 K20-K30 0.6 12 14.15 1680 92 4000 13.2
    YL10A K10-K20 0.8 8 14.65 1780 92.8 4200 10.7
    YL10.2 K20-K30 0.8 10 14.42 1600 91.5 4000 14.6
    YL10.2S K20-K30 0.8 10 14.46 1630 91.6 4000 17.5
    XL10 K20-K30 1.0 10 14.4 1560 91 3800 14.9
    XL06H K05-K10 1.2 6.5 14.85 1700 92.2 3600 11

    Cemented Carbide Rods

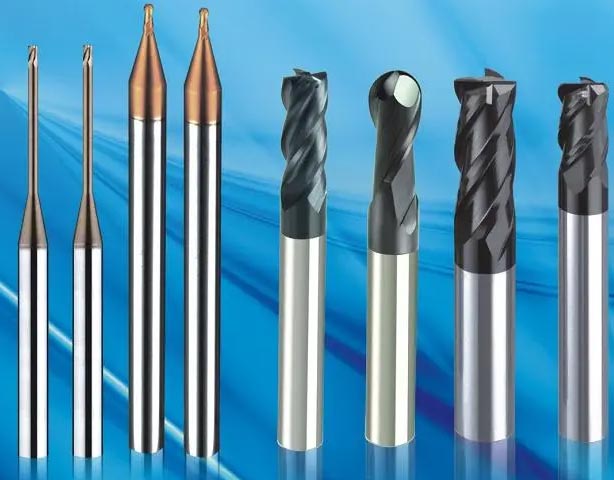

    Carbide rod of which tungsten carbide grain size ranges from 0.2micron to 0.8micron, cobalt content ranges from 6% to 12%, hardness ranges from 91.4HRA to 95HRA. Carbide rod is the raw material to make cutting tools, such as end mills, reamers, turning tools, carbide planer cutters, carbide drills, carbide boring bar cutters, etc., for cutting or machining cast iron, non-ferrous metals, plastics, chemical fiber, graphite, glass, stone, and ordinary steel, heat-resistant steel, stainless steel, high manganese steel, tool steel, wood, and other difficult-to-cut materials. As one of the top tungsten carbide rod suppliers, AEM is especially good at carbide bars for cutting difficult-to-cut materials and super hard matels.

    Cemented Carbide Rods List

    • Solid carbide rod
    • Helical carbide rod
    • Straight hole carbide rod
    • Ground carbide rod
    • Carbide preform
    • Gun drill preform
    • Carbide punch rod
    • Two straight hole carbide rod
    • Carbide strips
    • Carbide grades for drilling

    Advantages of Cemented Carbide

    • Does not wear so quickly as it is harder
    • Resists even high temperatures
    • Application fields: wherever tools or components are exposed to high wear (e.g. when cutting hard materials)
    • Improved quality of the tools and parts
    • Longer tool life
    • Improved security

    Cemented Carbide in Comparison to Other Materials

    1. Diamond/PCD: hardest existing material, but characterised by high fracture toughness
    2. Cemented carbide: enormous flexibility thanks to composition, can be designed either with higher toughness or higher wear resistance depending on the application. Range of applications varies extremely for cemented carbide and offers the greatest scope
    3. Steel: high toughness, but low hardness
    4. Ceramic: very low density, lighter than cemented carbide and heat-conducting, excellent hardness, low toughness
    5. CBN: high hardness, low toughness
    6. Cermet: high hardness, combines the hardness of cemented carbide and ceramic, but less tough
