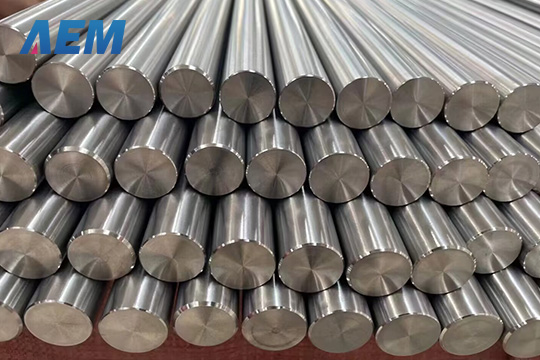

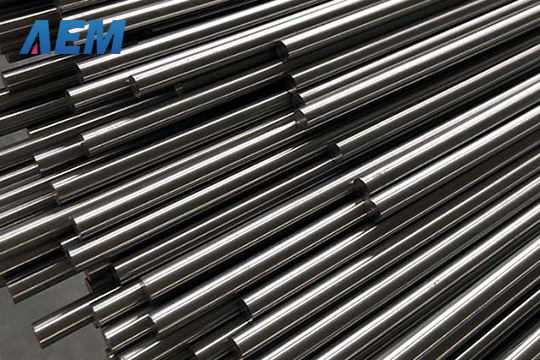

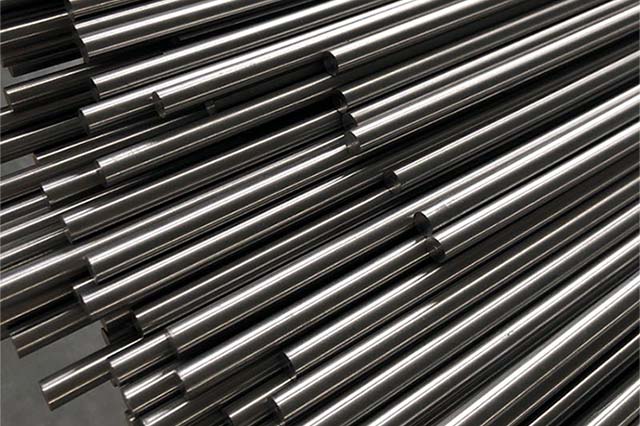

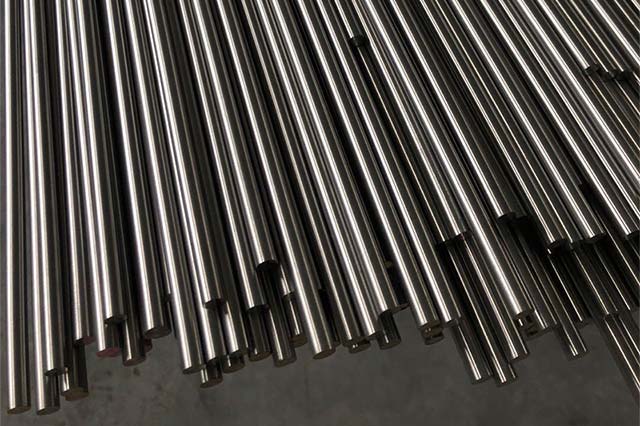

    Titanium Rod

    Description:

    We stock a wide range of titanium rod, including a complete line of commercially pure and medical titanium rod. Titanium connecting rod, titanium rod in femur, titanium welding rod, titanium filler rod, titanium threaded rod, Nitinol rod etc, can all be met. It can be supplied in random lengths or cut into fixed lengths, according to your precise dimensions.
    Titanium is highly resistant to chloride-containing media, practically all salt solutions, seawater, a range of acids, organic and inorganic chemicals and gases. The high environmental resistance is primarily based on a very thin, tenacious and highly protective surface oxide film. The oxide film provides high resistance to erosion in high velocity process streams. It is non-magnetic and characterized by a high melting point, high strength-to-weight ratio and a low modulus of elasticity.

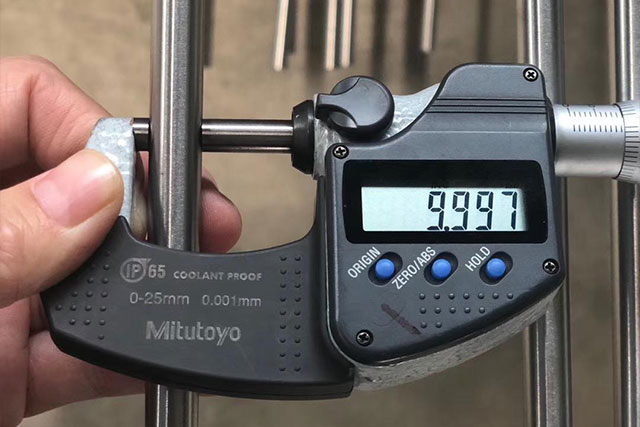

  • Size Dia. : 3 mm - 600 mm
    Material GR1 GR2 GR3 GR4 GR5 GR7 GR9 GR23, etc.
    Standard ASTM B348, ASTM F67, AMS 4928, ASTM F136,etc.
    Surface Black, Pickling, Sand-blasting, Polished
    Shape Square Bar, Round Bar, Hexagonal Bar, etc.
    Condition Cold rolled(Y), Hot rolled(R), Annealed (M), Quenching (C)

    Application:

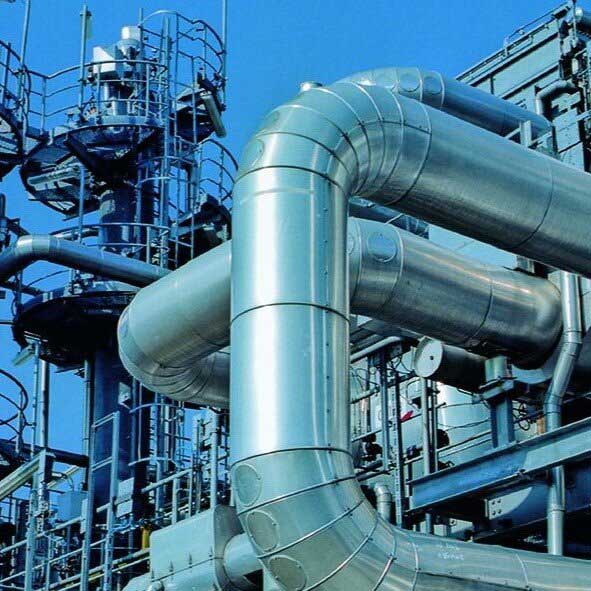

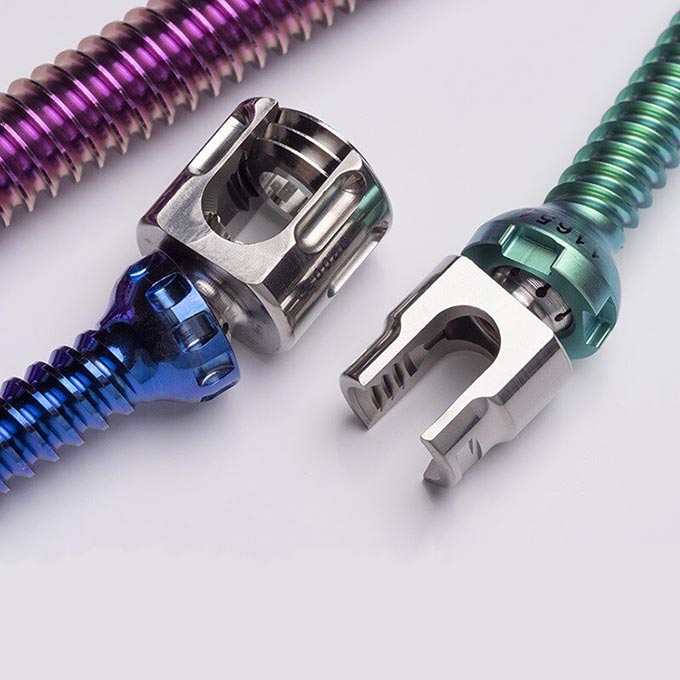

    Chemical processing, Medical instruments, Aerospace, Industry, Navigation, Smelting, Chemical plants, Machinery and equipment, Electroplating equipment, Precision instruments standard parts, Titanium wind leaf in power used, etc.

    Chemical requirements (Nominal %)

      N C H Fe O Al V Pa Mo Ni Ti
    Gr 1 0.03 0.08 0.015 0.2 0.18 / / / / / Remaining
    Gr 2 0.03 0.08 0.015 0.3 0.25 / / / / / Remaining
    Gr 3 0.05 0.08 0.015 0.3 0.35 / / / / / Remaining
    Gr 4 0.05 0.08 0.015 0.5 0.4 / / / / / Remaining
    Gr 5 0.05 0.08 0.015 0.4 0.2 5.5~6.75 3.5~4.5 / / / Remaining
    Gr 7 0.03 0.08 0.015 0.3 0.25 / / 0.12~0.25 / / Remaining
    Gr 9 0.03 0.08 0.015 0.25 0.15 2.5~3.5 2.0~3.0 / / / Remaining
    Gr12 0.03 0.08 0.015 0.3 0.25 / / / 0.2~0.4 0.6~0.9 Remaining

    Mechanical requirements

    Grade Tensil strength (min) Yeild strength (min) Elongation(%)
    ksi MPa ksi MPa
    1 35 240 20 138 24
    2 50 345 40 275 20
    3 65 450 55 380 18
    4 80 550 70 483 15
    5 130 895 120 828 10
    7 50 345 40 275 20
    9 90 620 70 438 15
    12 70 438 50 345 18

    Features :

    Low density and high strength;
    Excellent corrosion resistance;
    Good resistance to effect of heat;
    Excellent bearing to cryogenic property;
    Non Magnetic and non-toxic;
    Good thermal properties.

    Testing:

    Corrosion test
    Eddy Current test

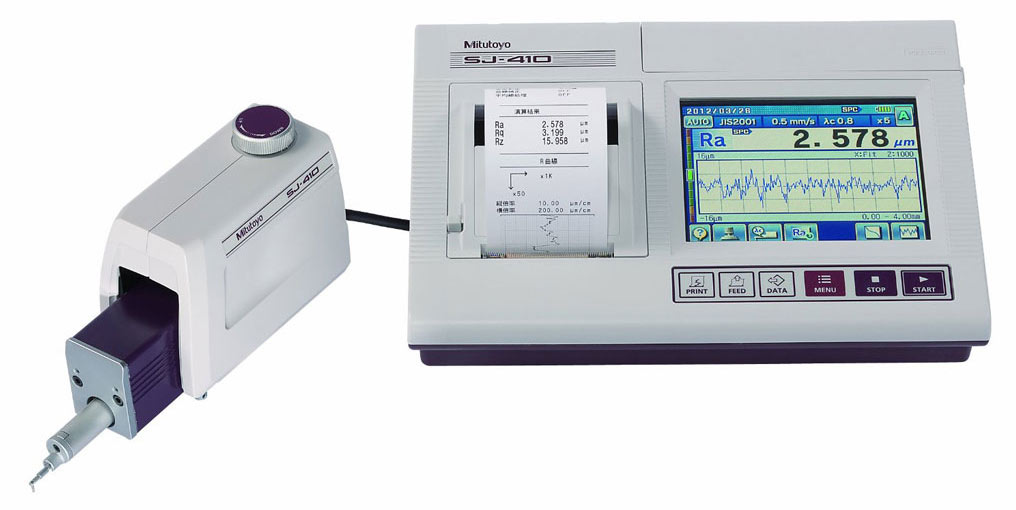

    Mechanical test
    Microstructure test

    Titanium rod is produced and certified to Medical (ASTM F67, ASTM F136, ISO5832-2, ISO5832-3), Aerospace (AMS 4928, AMS 2631b), Industrial (ASTM B348) standards. Stock production is aligned to ASTM, AMS and ISO standards with other standards available on made to order.
