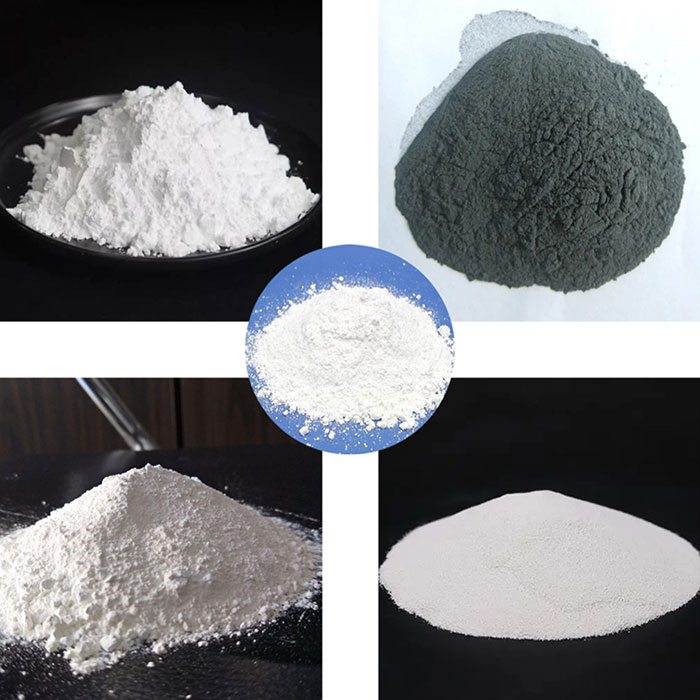

    Zirconia Powder

    Zirconia Powder
  • Zirconia Powder
  • Zirconia Powder
  • Zirconia Powder

    A hard white amorphous powder, ZrO2, derived from zirconium and also found naturally, used chiefly in pigments, refractories, and ceramics and as an abrasive. Produced by thermal processes.
    Chemical Name: Zirconium oxide
    Chemical Formula: ZrO2

    Zirconia Powder Specifications

    Molecular Weight (g/mol.) 123.22
    Density (g/cm3) 5.7
    Specific Gravity 5.75
    Specific Heat @25°C (cal/g-°C)  ~0.10
    Melting Point (°C) ~2700
    Boiling Point (°C) ~5500
    Surface Area (m2/g) 2.7-3.2
    Thermal Conductivity @ RT (W/m-K)   2.7
    Mohs Hardness @20°C 6.5
    pH
    Crystal Structure tetragonal
    Color white / grey black

    Chemical and Phsical Properties of Zirconia Powder

      Grade
    AEM-0Y-1 AEM-0Y-2
    Chemical Composition (wt%) Zr(Hf)O2 ≥99.9 ≥99.5
    Al2O3 <0.005 <0.005
    Fe2O3 <0.003 <0.003
    SiO2 <0.005 <0.005
    TiO2 <0.003 <0.003
    Na2O <0.005 <0.005
    K2O <0.005 <0.005
    CaO <0.005 <0.005
    Mgo <0.005 <0.005
    Cl- <0.05 <0.05
    Water (wt%) <0.5 <0.5
    Lose on Ignition (wt%) <1.0 <1.0
    D50 (um) <1.0 <1.0
    Specific Surface Area (m2/g) 3-30 3-30

    Zirconia Powder Applications

    The high-purity zirconia powder we provide can be used in many occasions, such as cathode material of lithium battery, TZP structure, teeth, back plate of mobile phone, zirconia gem, etc. Among them:

    Used as positive material:
    The zirconia powder provided by us has the characteristics of fine size, uniform particle size distribution, no hard agglomeration and good sphericity. Doping it into the cathode material of lithium battery can improve the cycle performance and rate performance of the battery. Using its conductivity, high purity zirconia powder can be used for electrode manufacturing in high performance solid battery. Zirconia powder (99.99%) can be used as anode materials for lithium batteries, such as nickel cobalt lithium manganate (NiCoMn) O2), lithium cobaltite (LiCoO2), lithium manganate (LiMn2O4).

    For structural members:
    TZP, tetragonal zirconia polycrystalline ceramics. When the amount of stabilizer is controlled at a proper amount, t-ZrO2 can be stored in a metastable state to room temperature. Under the action of external force, it can make t-ZrO2 phase change, toughen the non phase change ZrO2 body, and improve the fracture line of the whole ceramic. TZP has excellent mechanical properties such as high strength, high toughness and high wear resistance. It can be used to make fire-resistant and high temperature resistant structural parts.

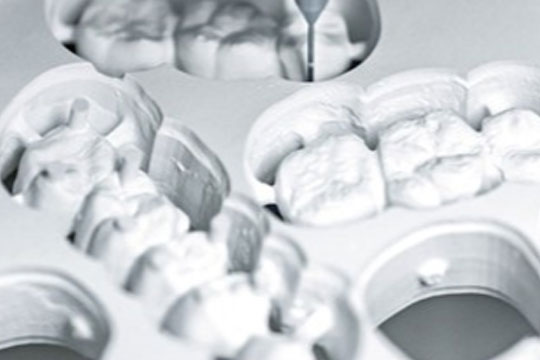

    For porcelain teeth:
    Zirconia has high strength, good biocompatibility, no stimulation to gingiva and no allergic reaction, so it is very suitable for oral use. Therefore, zirconia powder is often used to make zirconia ceramic teeth. Zirconia all ceramic teeth are made by computer-aided design, laser scanning, and then controlled by computer program. It has the characteristics of good translucent appearance, high density and intensity, perfect close edge, no gingivitis, no obstruction to X-ray and so on. It can get long-lasting repair effect in clinical.

    Used to make back panel of mobile phone:
    In 5G era, signal transmission speed is required to be 1-100 times of 4G. 5G communication will use a spectrum of more than 3GHz, and its millimeter wave wavelength is shorter. Compared with the metal backplane, the ceramic backplane of the mobile phone has no interference to the signal, and has the incomparable superior performance of other materials. Among all the ceramic materials, zirconia ceramic has the advantages of high strength, high hardness, acid and alkali resistance, corrosion resistance and high chemical stability. At the same time, it has the characteristics of scratch resistance, no signal shielding, excellent heat dissipation performance and good appearance effect. Therefore, zirconia has become a new type of mobile phone body material after plastic, metal and glass. At present, the application of zirconia ceramic in mobile phone is mainly composed of back plate and fingerprint identification cover plate.

    Used to make zirconia gem
    The production of zirconia gemstones from zirconia powder is an important field of zirconia deep processing and application. The synthetic cubic zirconia is a hard, colorless and optically flawless crystal. Because of its low cost, durable and similar appearance to diamonds, cubic zirconia gemstones have been the most important substitutes for diamonds since 1976.

    Zirconia Powder Features

    1. Small particle diameter, narrow distribution range, activity, stable.

    2. Excellent liquidity and compactness, easy to mold and sinter.

    3. BET and Particle Size of airflow or granulation one can be controlled on customers' request.

    Zirconia Powder Package

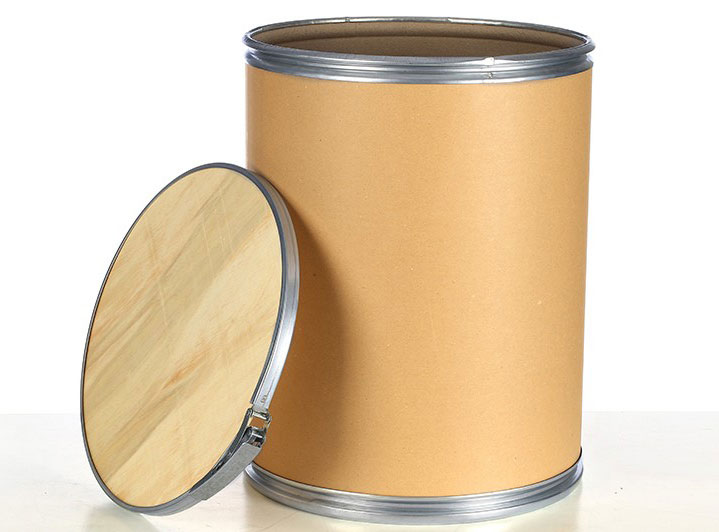

    Fiber drums, steel drums, and bulk bags
