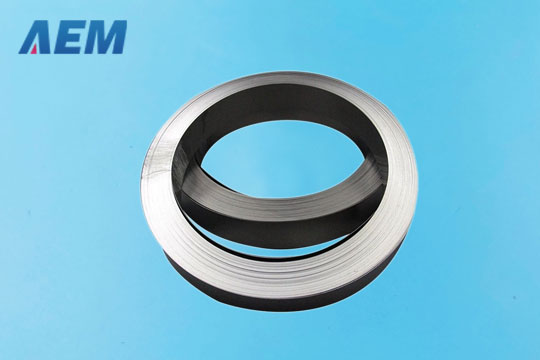

Rhenium Foil

Rhenium Foil

Rhenium foil is mainly used for chemical vapor phase deposition coating and film(CVD) and physical vapor deposition(PVD) procss, including hot electron beam evaporation, low temperature organic evaporation, atomic layer deposition(ALD) and metal organic chemical vapor deposition product(MOCVD) etc.

Rhenium Foil Properties

Chemical purity Re 99.99%min(calculated by subtractive method, except gas element), density 21g/cc min.

Rhenium Foil Specifications

Material	Purity
Rhenium Foil .001”	3N5, 4N
Rhenium Foil .002”	3N5, 4N
Rhenium Foil .003”	3N5, 4N
Rhenium Foil .004”	3N5, 4N
Rhenium Foil .005”	3N5, 4N
Rhenium Foil .006”	3N5, 4N
Rhenium Foil .007”	3N5, 4N
Rhenium Foil .008”	3N5, 4N
Rhenium Foil .009”	3N5, 4N

Foil is cut to order and sold by the square inch or square foot.Call or email for additional thicknesses or custom sizes.

Rhenium Foil Size

T(0.01-20)*W(0.5-500)mm, It can be customized as per requirement.

Typical Chemical Analysis of Rhenium Foil

Na	0.00%	Ti	0.00%	Cu	0.00%	Sb	0.00%
Mg	0.00%	V	0.00%	Zn	0.00%	Ta	0.00%
Al	0.00%	Cr	0.00%	As	0.00%	W	0.00%
Si	0.00%	Mn	0.00%	Zr	0.00%	Pb	0.00%
P	0.00%	Fe	0.00%	Mo	0.00%	Bi	0.00%
K	0.00%	Co	0.00%	Cd	0.00%	Se	0.00%
Ca	0.00%	Ni	0.00%	Sn	0.00%	Tl	0.00%
o	0.01%	C	0.00%	N	0.00%	H	0.01%
