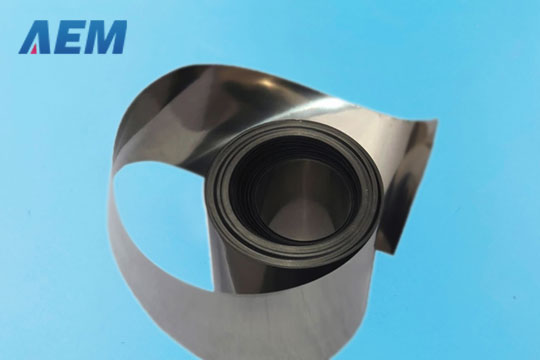

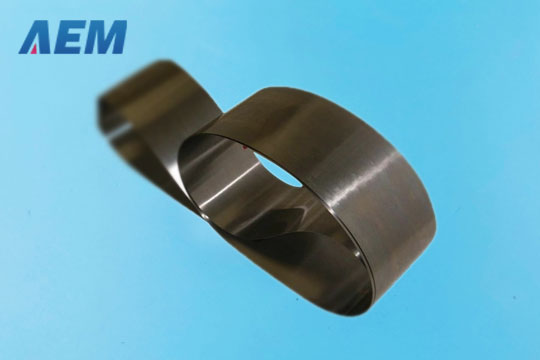

    Hafnium Foil

    Hafnium Foil
  • Hafnium Foil
  • Hafnium Foil
  • Hafnium Foil
  • Hafnium Foil

    Hafnium is a ductile metal with a brilliant silver luster. The presence of zirconium impurities considerably influences its properties. Among all of the elements, zirconium and hafnium are two of the most difficult to separate. Their chemistry is almost identical; the density of zirconium is about half of hafnium. Very pure hafnium has been produced, with zirconium being the major impurity.
    A foil is a thin sheet of pure metal; some foils have protective coatings given their fragile nature.

    Hafnium Foil Properties

    Purity Hf+Zr > 99.95%, Zr < 5%
    Density 13.3 g/cm3
    Appearance Silver metal
    Melting Point 2227 ℃

    Hafnium Foil Specifications

    Thickness Width Length
    .001″ to .003″ Up to 4″ maximum Up to 12″ maximum
    .004″ to .008″ Up to 6″ maximum Up to 20″ maximum
    .009″ to .015″ Up to 6″ maximum Up to 24″ maximum
    .016″ to .030″ Up to 6″ maximum Up to 12″ maximum

    Hafnium Foil Applications

    1. Used in the atomic energy industry and aerospace industry.
    2. Used for the control rod material in the nuclear reactor,
    3. Can be made for the small size and large energy rocket booster.
    4. Electrode of hypertherm, thermal dynamics.

    Related Products of Hafnium Foil

    Hafnium Crystal Bar Hafnium Wire Hafnium Rod Hafnium Plate Hafnium Foil
    Hafnium Pieces Hafnium Pellets Hafnium(IV) Oxide Pellet Hafnium Fluoride Powder Hafnium Sputtering Target
    Hafnium Alloy Hafnium Carbide Powder Hafnium Bar Hafnium Sheet
