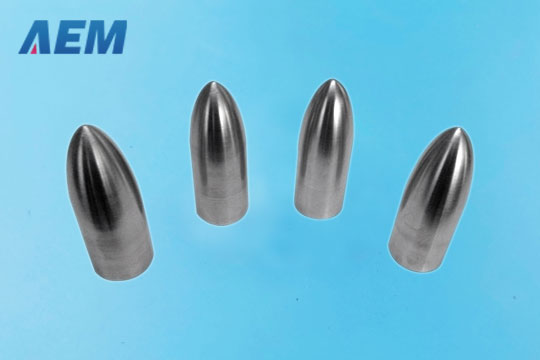

    Molybdenum Mandrel

    Molybdenum Mandrel
  • Molybdenum Mandrel
  • Molybdenum Mandrel
  • Molybdenum Mandrel

    Molybdenum Mandrels are generally immediately available in most volumes, including bulk quantities. AEM produces materials to custom specifications by request, in addition to custom compositions for commercial and research applications and new proprietary technologies. Molybdenum mandrel can be used for piercing seamless steel pipes such as stainless steel, drill steel, and high-temperature alloy steel.
    Additional composition of molybdenum mandrels:
    Ti: (0. 4~0. 55)%
    Zr: (0. 06~0. 12)%
    C: (0. 01~0. 04)%.
    Chemical composition: This product is made with molybdenum powder FMo-1 with the addition of trace elements.

    Molybdenum Mandrel Characteristics

    AEM has developed the high-temperature molybdenum piercing mandrels. The R&D crafts include selecting, and mixing raw materials compressed into embryo material, sintering in the intermediate frequency furnace in 1850-1950℃, and then turning to mold. The average density of the products is more than 9.7g\cm³. Compared with the common molybdenum piercing mandrels, the density improves 2%-6%, the Vickers hardness reaches above 350kg\mm², and the abrasion resistance increases 60%-80%.

    Molybdenum Mandrel Applications

    1. Suitable for producing iron implantation parts
    2. For producing electric light source parts, and electric vacuum components
    3. For producing heating elements, and refractory parts in high-temperature furnaces
    4. Used in the glass, and glass fiber industry, it can serve a long life in melted glass liquid at 1300°C
    5. Used as electrodes in the field of rare earth metal industry
    6. Used for piercing seamless steel tubes, such as stainless steel, borer steel, and high-temperature alloy steel.

    Molybdenum Mandrel Specifications

    Our molybdenum mandrel is produced by shaping, sintering and mechanical processing.
    Diameter (mm) Length (mm)
    Size Tolerance Size Tolerance
    20-55 ±3 60-110 ±6
    60-80 ±4 160-200 ±8
    85-100 ±6 180-260 ±8
    110-150 ±8 200-300 ±10
    160-250 ±10 280-450 ±15

    Molybdenum Mandrel Density

    Not less than 9.2g/cc

    Surface Condition of Molybdenum Mandrel

    The surface is clean, smooth without any quality defects, including over-heated, bubble, crack, split, and badly oxidation. In the finished product's working process, holes larger than 0.5mm in length and depth are not permitted in the fields of sizing area, while holes larger than 1mm in the length and depth are not permitted in the fields of the non-sizing area.
