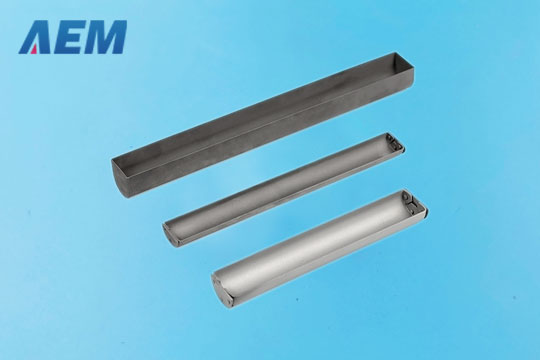

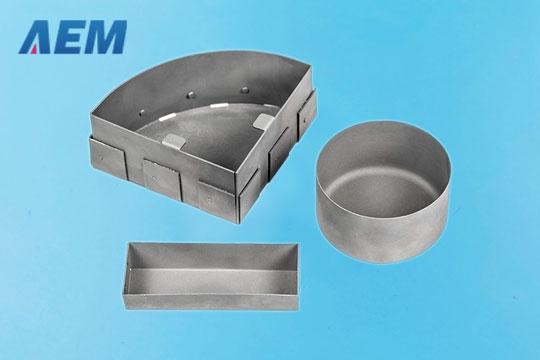

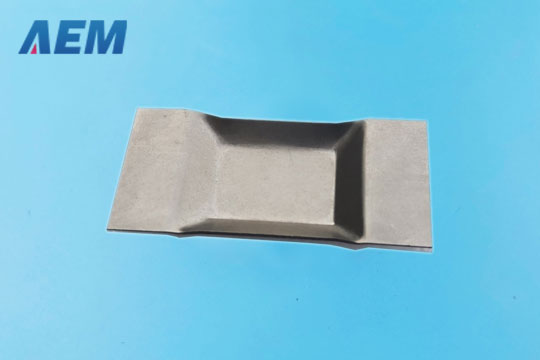

    Molybdenum Boat

    Molybdenum Boat
  • Molybdenum Boat
  • Molybdenum Boat
  • Molybdenum Boat
  • Molybdenum Boat
  • Molybdenum Boat

    Thermal evaporation (resistance evaporation) is a coating method employed during physical vapor deposition. The material that is to form the subsequent layer is heated in a vacuum chamber until it evaporates. The vapor formed by the material condenses on the substrate and forms the required layer. Molybdenum boats share properties with their source material, either pure molybdenum or molybdenum alloy. These are formed from processed molybdenum plates that have undergone cutting, folding, riveting, and/or welding. The boat shapes can be molded according to customers' requirements, including round, rectangular, square, and trapezoidal, and so on.
    Standard: ASTM B386
    Material:  >99.95%
    Density: 9.8~10.20g/cc

    Shapes of Evaporation Boats

    1. Trough Boats
    2. Dimple Boats
    3. Notched Boats
    4. Canoe Boats
    5. Holed/ Covered Boats
    6. Slab/ Flat/ Dish Boats
    7. Well Boats
    8. Tube Heater/ Crucible Heater Boats
    9. Elongated Dimple Boats

    Dimensions of Evaporation Boats

    Type Length
    (mm)
    Width
    (mm)
    Length or Diameter  of
    the Recess (mm)
    Depth of
    the Recess (mm)
    Thickness
    (mm)
    Volume
    (cc)
    AEMEB-1 100 mm 20 mm 37 mm 3.2 mm 0.1 mm, 0.2 mm , 0.3 mm 0.62 cc
    AEMEB-2 100 mm 13 mm 10 mm 2.0 mm 0.1 mm, 0.2 mm , 0.3 mm 0.07 cc
    AEMEB-3 100 mm 17 mm 15 mm 2.9 mm 0.1 mm, 0.2 mm , 0.3 mm 0.23 cc
    AEMEB-4 102 mm 15 mm 40 mm 2.5 mm 0.1 mm, 0.2 mm , 0.3 mm 0.83 cc
    AEMEB-5 100 mm 16 mm 50 mm 3.8 mm 0.1 mm, 0.2 mm , 0.3 mm 2.04 cc
    AEMEB-6 100 mm 13 mm 18 mm 2.0 mm 0.1 mm, 0.2 mm , 0.3 mm 11.2 cc
    AEMEB-7 90 mm 14 mm 10 mm 2.0 mm 0.1 mm, 0.2 mm , 0.3 mm 0.07 cc
    AEMEB-8 100 mm 15 mm 40 mm 2.3 mm 0.1 mm, 0.2 mm , 0.3 mm 0.74 cc
    AEMEB-9 100 mm 16 mm 34 mm 2.9 mm 0.1 mm, 0.2 mm , 0.3 mm 0.61 cc
    AEMEB-10 100 mm 17 mm 15 mm 2.5 mm 0.1 mm, 0.2 mm , 0.3 mm 0.2 cc
    AEMEB-11 100 mm 17 mm 40 mm 10 mm 0.1 mm, 0.2 mm , 0.3 mm 5.79 cc
    AEMEB-12 100 mm 10 mm 44 mm 2.7 mm 0.1 mm, 0.2 mm , 0.3 mm 0.44 cc
    The customized size can be porvided accroding to customer's drawings.

    Drawings of Evaporation Boats


    AEMEB-1   AEMEB-2   AEMEB-3   AEMEB-4

    AEMEB-5   AEMEB-6   AEMEB-7   AEMEB-8

    AEMEB-9   AEMEB-10   AEMEB-11   AEMEB-12

    Molybdenum Boat Applications

    Molybdenum boats are widely used as the boat in electric light source, rare earth industry, nuclear fuel, electronic ceramics, and a high proportion of sintering industry. These are also used as carrying boats and related parts of the high-temperature furnace of machines.

    Molybdenum Boat Specifications

    AEM can provide bending, folding, riveting, pressing, and welding molybdenum boats according to our customers’ requirements. Molybdenum boats are manufactured by our special production line and elaborately made from molybdenum plates with high-quality. Our molybdenum boat has high purity, high-density, varied types, stable performance, and longer service life, which will help you to save your cost.
    Length: 50mm-1000mm
    Width: 10mm-500mm
    Height: 10mm-300mm
    Wall thickness: 0.3mm-10mm
    Acceptable working temperature: No higher than 1800°C
    Regular working temperature: 1250°C

    Molybdenum Boat Package

    Our molybdenum boats are wrapped in foam and packaged in plywood cases to ensure safe storage and transportation.
