    Spherical Tantalum Powder

    Spherical Tantalum Powder
  • Spherical Tantalum Powder
  • Spherical Tantalum Powder
  • Spherical Tantalum Powder
  • Spherical Tantalum Powder

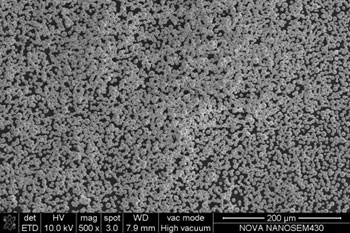

  • Tantalum Powder

    Tantalum is twice as dense as steel and it is highly ductile at high temperatures. It has the fourth highest melting point of all metals and is able to form extremely thin and protective oxide layers for high-quality capacitors. Our tungsten powder has high surface area and great handling and flow properties.
    Tantalum powder can be divided into three categories for capacitor tantalum, metallurgical tantalum and Voltage Tantalum Powder.



    High-capacitance Tantalum Powder Series

    Features:

    • Produced by the sodium reduction method.

    • It’s suitable for making capacitors with a rated withstand voltage of 4v-40v.

    • Excellent materials for making chips, impregnated tantalum electrolytic capacitors and organic polymer polymer capacitors, which have the advantages of good moldability, high specific capacitance, small leakage current, and low equivalent series resistance.


    Electrical Properties

    Grade Capacitance(+10%-6%)
    (μFV/g)
    Volume shrinkage
    (%)
    Current leakage
    (nA/μFV)
    Dissipation factor
    (%)
    Breakdown voltage
    (V)
    FTa16-700 70000 ≤15 ≤0.5 ≤40 ≥120
    FTa16-500 50000 ≤18 ≤0.4 ≤25 ≥120
    FTa16-400 40000 ≤18 ≤0.4 ≤20 ≥120
    FTa16-300 30000 ≤18 ≤0.4 ≤20 ≥120
    FTa16-230 23000 ≤18 ≤0.4 ≤15 ≥140


    Chemical Analysis (Maximum Values/wt ppm)

    Grade O C N H Fe Ni Cr Si Ti Nb Na+K W Mo
    FTa16-700 4000 40 1000 180 30 30 20 20 5 30 40 10 5
    FTa16-500 3500 40 500 170 30 30 20 20 5 30 30 10 5
    FTa16-400 3000 40 500 170 30 30 20 20 5 30 30 10 5
    FTa16-300 2500 30 400 120 30 30 20 20 5 30 30 10 5
    FTa16-230 2500 30 150 120 30 30 20 20 5 30 20 10 5


    Physical Properties

    Grade Bulk density(g/cm3) Average fisher size(um) Particle-size distribution
    (-325mesh%)
    FTa16-700 1.5-2.1 1.8-3.0 ≤35
    FTa16-500 1.6-2.2 2.0-3.4 ≤35
    FTa16-400 1.6-2.2 2.0-3.5 ≤35
    FTa16-300 1.7-2.3 2.4-3.5 ≤35
    FTa16-230 1.7-2.3 2.4-3.5 ≤35

    Middle-Voltage Tantalum Powder Series

    Features:

    • Simple flake shape.

    • Larger Fischer particle size and smaller specific surface area

    • Good sintering resistance, high reliability and high voltage resistance

    • It’s suitable for making medium to high voltage solid tantalum electrolytic capacitors with high reliability requirements from 20 to 63V.


    Electrical Properties

    Grade Capacitance(+10%-6%)
    (u FV/g)
    Current leakage
    (nA/u FV)
    Dissipation factor
    (%)
    Breakdown voltage
    (V)
    FDP-100 10000 ≤0.4 ≤10 ≥180
    FDP -80 8000 ≤0.4 ≤10 ≥230
    FDB -52 5200 ≤0.5 ≤8 ≥240
    FTa40-42 4200 ≤0.5 ≤8 ≥240

    Chemical Analysis (Maximum Values/wt ppm)

    Grade O C N Fe Ni Cr Si Ti Nb Na K W Mo Al Mn
    FDP-100 2200 60 100 50 10 15 20 5 30 15 15 20 10 5 5
    FDP-80 2100 60 100 50 10 15 20 5 30 10 10 20 10 5 5
    FDB-52 1700 45 50 35 10 15 20 5 30 10 10 20 10 5 5
    FTa40-42 1700 45 50 35 10 15 20 5 30 10 10 20 10 5 5

    Physical Properties

    Grade

    Bulk density (g/cm3)

    Average fisher size (um)

    Particle-size distribution
    (-325mesh%)

    FDP-100

    1.5-2.3

    3.0-5.0

    ≤30

    FDP-80

    1.7-2.5

    3.0-5.0

    ≤30

    FDB-52

    3.0-4.0

    4.5-8.0

    ≤30

    FTa40-42

    3.5-4.5

    5.0-9.0

    ≤30


    High-Voltage Tantalum Powder Series

    Features:

    • Simple structure.

    • Smaller specific surface area

    • Good voltage resistance, and high breakdown voltage

    •  It’s suitable for making medium to high voltage solid tantalum electrolytic capacitors with specifications greater than 63V


    Electrical Properties

     Grade

    Capacitance
    (+10%-6%)(uFV/g)

    Current leakage
    (nA/u FV)

    Dissipation factor
    (%)

    Breakdown voltage
    (V)

    FTa50-50

    5000

    ≤0.6

    ≤6

    ≥260

    FTa50-40

    4000

    ≤0.6

    ≤6

    ≥260

    FDC-50

    5000

    ≤0.7

    ≤6

    ≥300

    FTa63-40

    4000

    ≤0.7

    ≤6

    ≥300

    FTa63-35

    3500

    ≤0.7

    ≤6

    ≥300

    FTa63-28

    2800

    ≤0.7

    ≤5

    ≥300

    FTa63-25

    2500

    ≤0.7

    ≤4

    ≥300

    FTa63-20

    2000

    ≤0.7

    ≤3

    ≥300

    FTa63-15

    1500

    ≤0.7

    ≤3

    ≥300

    FTa63-10

    1000

    ≤0.7

    ≤3

    ≥300


    Chemical Analysis (Maximum Values/wt ppm)

    Grade

    O

    N

    C

    Fe

    Ni

    Cr

    Si

    Ti

    Nb

    W

    Mo

    AL

    Mn

    FTa50-50

    1800

    60

    50

    40

    15

    15

    20

    10

    30

    10

    10

    5

    5

    FTa50-40

    1600

    60

    50

    40

    15

    15

    20

    10

    30

    10

    10

    5

    5

    FDC-50

    2000

    60

    60

    50

    15

    15

    20

    10

    30

    10

    10

    5

    5

    FTa63-40

    1800

    60

    40

    35

    15

    15

    20

    10

    30

    10

    10

    5

    5

    FTa63-35

    1600

    60

    40

    30

    15

    15

    20

    10

    30

    10

    10

    5

    5

    FTa63-28

    1400

    40

    30

    20

    10

    10

    20

    10

    30

    10

    10

    5

    5

    FTa63-25

    1400

    40

    30

    20

    10

    10

    20

    10

    30

    10

    10

    5

    5

    FTa63-20

    1200

    40

    25

    15

    10

    10

    20

    5

    30

    10

    10

    5

    5

    FTa63-15

    1000

    40

    25

    15

    10

    10

    20

    5

    30

    10

    10

    5

    5

    FTa63-10

    1000

    40

    25

    15

    10

    10

    20

    5

    30

    10

    10

    5

    5


    Physical Properties

    Grade

    Bulk density(g/cm3)

    Average fisher size(μm)

    FTa50-50

    2.5-3.5

    5.5-7.5

    FTa50-40

    3.0-4.0

    7.5-11.0

    FDC-50

    2.5-3.5

    4.0-7.0

    FTa63-40

    3.5-4.5

    8.0-11.0

    FTa63-35

    3.5-4.5

    8.0-12.0

    FTa63-28

    3.5-5.5

    8.0-12.0

    FTa63-25

    4.0-6.0

    9.0-14.0

    FTa63-20

    4.0-6.0

    8.0-13.0

    FTa63-15

    5.0-6.5

    9.0-15.0

    FTa63-10

    5.5-6.5

    10.0-20.0




    Tantalum Powder for Metallurgical Purposes

    Features:

    • Appearance: Dark grey powder or black powder.

    • Application: Used for making various tantalum processing materials and alloy additives


    Grade:FTa-01,  FTa-02,  FTa-1

    Grade

    FTa-01

    FTa-02

    FTa-1

    Main content

    Ta,%,Minimum

    99.95

    99.95

    99.95

    Impurity content ,
    %,max

    O

    0.100

    0.120

    0.180

    C

    0.005

    0.005

    0.008

    N

    0.005

    0.005

    0.008

    H

    0.003

    0.003

    0.003

    Fe

    0.004

    0.004

    0.005

    Ni

    0.003

    0.003

    0.005

    Cr

    0.003

    0.003

    0.005

    Nb

    0.003

    0.003

    0.005

    W

    0.002

    0.002

    0.002

    Mo

    0.001

    0.001

    0.002

    Si

    0.003

    0.003

    0.005

    Mn

    0.001

    0.001

    0.001

    Ti

    0.001

    0.001

    0.001

    Fsss(um)

    3.0-10.0

    3.0-10.0

    3.0-10.0

    Sieve mesh

    -80

    -80

    -80

    Application

    Tantalum processing and alloying additives

    Special requirements to be agreed upon by the supplier and buyer

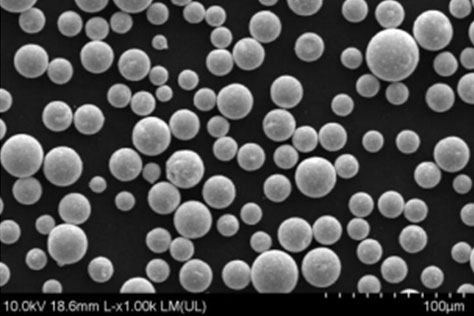

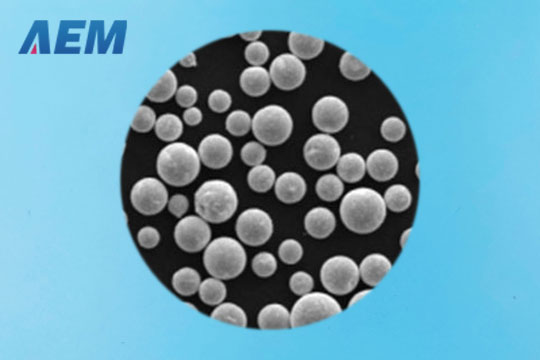

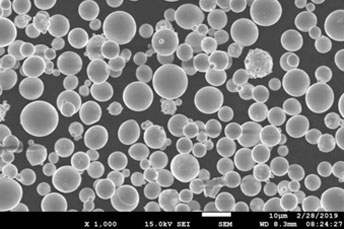

    Spherical Tantalum Powder

    AEM’s spherical Tantalum powder is a good choice for 3D printing technology as its high purity, uniform particle size, complete surface structure, easy dispersion, large specific surface area and high surface activity. Our spherical Tantalum powder has a high level of sphericity and controlled grain size which make it the ideal powder for surface coating. It is the material of choice for many applications because of its biocompatible features among other things.

    Physical Properties of Spherical Tantalum Powder

    Size  15-53 um
    Apparet density  9.75 g/cm3
    Tap density  10.8 g/cm3
    Hall flow rate  5.8 s/50g

    Chemical Composition of Spherical Tantalum Powder

    Chemical Composition - by ICP-AES
    Element Ta Fe Mg Cu Al Ca Sn Mn
    Value (%) ≥99.9 0.002 <0.001 <0.001 <0.001 <0.001 <0.001 <0.001
    Element Ti Mo W Nb Si Cr Ni
    Value (%) <0.001 <0.001 <0.001 <0.001 <0.001 <0.001 <0.001
    Gas Impurities
    Element C H O N
    Value (%) 0.002 0.0018 0.045 0.004

    Features of Spherical Tantalum Powder

    - Biocompatible properties;
    - High resistance to corrosion;
    - Resistant to high temperature.

    Application of Spherical Tantalum Powder

    - Metal injection molding (MIM);
    - Additive manufacturing (AM);
    - Thermal spray (TSA);



    Packaging of Tantalum Powder

    In iron drums with inside plastic bags of 100kg or 200kg net each.
