    Tungsten Oxide Powder

    Tungsten Oxide Powder
  • Tungsten Oxide Powder
  • Tungsten Oxide Powder
  • Tungsten Oxide Powder

    Tungsten Oxide, also known as tungsten trioxide or tungstic anhydride, WO3, is a chemical compound containing oxygen and the transition metal tungsten.
    Product name: Tungsten Trioxide
    Fsss range: 10~μm(fine), 1~2μm(superfine), 50~100nm
    Scott density: 2.0-2.6g/cm3
    L.O.I.: 0.5%max

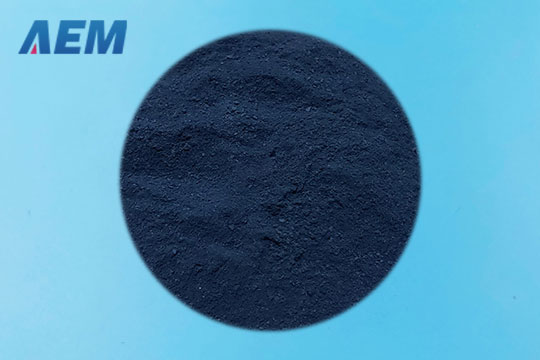

    Appearance: Free-flowing dark blue or yellow crystalline powder.
    Packing: In iron drums with inside plastic bags of 100kg or 200kg net each.

    Tungsten Oxide Powder Applications

    1. Manufacturing tungsten products, especially tungsten powder. The process of W powder are hydrogen reduction method and carbon reduction method.
    2. Measuring sulfur. When coulometric titration is used to measure sulfur, WO3 is used as a catalyst, which can significantly reduce the activation energy of the reaction and increase the reaction rate, saving energy consumption.
    3. As a target material. Tungsten trioxide target is an optimized solution for tungsten trioxide powder, and it can be used as a commonly used evaporation material for preparing tungsten trioxide electrochromic thin films by electron beam evaporation.
    4. Used as ceramic raw material. Tungsten trioxide functional ceramics have the potential to be applied to varistors.
    5. Act as a catalyst. Tungsten trioxide can be used as an ideal catalyst for photolysis of water, and has important application prospects in the field of solar photolysis of water for hydrogen production.
    6. For dimming glass, the application of tungsten trioxide as an electrochromic film material is based on the existing laminated glass manufacturing method, and the dimming film is firmly bonded between two pieces of ordinary float glass.
    7. As a shielding material. Tungsten trioxide has the advantages of good shielding effect, good air permeability and washability. It can be made into metal fiber radiation protection clothing and can also be used in medical shielding parts.
    8. As a fuel cell carrier. Tungsten trioxide can partially replace carbon as a fuel cell carrier, load precious metals, and form a Pt/WO3/C catalyst, thereby greatly improving the corrosion resistance of the catalyst and ultimately improving the service life of the catalyst.
    9. Prepare the resistive element. As a sensitive material, tungsten trioxide has the advantages of simple structure, low cost, and high sensitivity, and can be used to prepare resistance elements, such as NO2 gas sensor and H2S gas sensor.


    Blue Tungsten Oxide Powder

    Chemical Composition:

    WO2.8-2.97(>%): 99.9
    Impurities Content (<%) Impurities Content (<%)
    AI 0.0005 Na 0.001
    As 0.001 Ni 0.0007
    Bi 0.0001 K 0.001
    Ca 0.001 P 0.0007
    Cd 0.0001 Pb 0.0001
    Cr 0.001 S 0.0007
    Co 0.001 Sb 0.0005
    Cu 0.0003 Si 0.001
    Fe 0.001 Sn 0.0002
    Mg 0.0007 Ti 0.001
    Mn 0.001 V 0.001
    Mo 0.002

    Physical Properties:

    Particle: -60 mesh
    Bulk density: 2.4-2.8g/cm3
    F.s.s.s.: 12-29um

    Yellow Tungsten Oxide Powder

    Chemical Composition:

    Grade A1 A2
    Purity WO3≥99.95% WO3≥99.9%
    Blanch Loss ≤0.5% ≤0.5%
    Element Content (≤%) Content (≤%)
    Al 0.0005 0.0010
    As 0.0010 0.0150
    Bi 0.0001 0.0010
    Ca 0.0010 0.0060
    Cd 0.0010 0.0010
    Co 0.0010 0.0010
    Cr 0.0010 0.0010
    Cu 0.0003 0.0010
    Fe 0.0010 0.0030
    K 0.0010 0.0010
    Mg 0.0007 0.0010
    Mn 0.0010 0.0010
    Mo 0.0020 0.0200
    Na 0.0010 0.0040
    Ni 0.0007 0.0010
    P 0.0007 0.0020
    Pb 0.0001 0.0010
    S 0.0007 0.0020
    Sb 0.0005 0.0010
    Si 0.0010 0.0040
    Sn 0.0002 0.0010
    Ti 0.0010 0.0010
    V 0.0010 0.0010
    FSSS 12 - 20 um 0.6 - 1.8 um
    Other physical properties can be adjusted as per the client's requirements.



    Packaging: two plastic-lined, foreign iron, 50 per barrel, 100 or 200 kg, and customized packaging.
