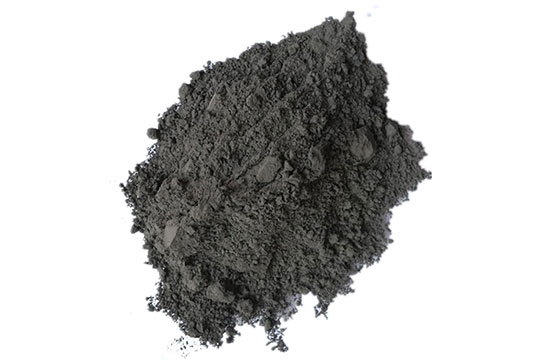

    Tantalum Powder

    Tantalum Powder
  • Tantalum Powder
  • Tantalum Powder

    Tantalum has twice the density of steel, and it is highly ductile. It has the fourth-highest melting point of all metals and can form fragile and protective oxide layers for high-quality capacitors. Our powder also has a high surface area, great handling and flow properties.
    Tantalum powder can be divided into two categories. One is capacitor tantalum, and the other is metallurgical tantalum.


    Tantalum Powder Applications

    Metallurgical tantalum is used for making tantalum foils and tantalum wires.

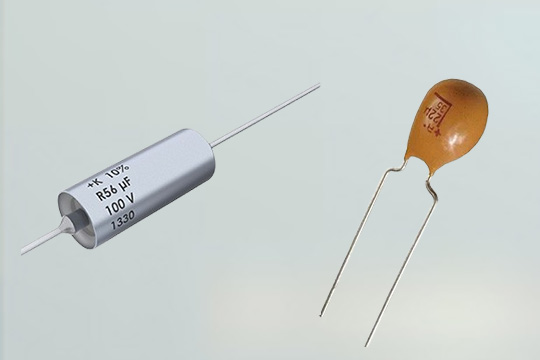

    Tantalum capacitors for electronic circuits are used in:
    1. Medical appliances, such as hearing aids and pacemakers.
    2. Automotive components such as ABS, airbag activation, engine management modules, GPS.
    3. Portable electronics, e.g., laptop computers, cellular/mobile phones, video cameras, digital still cameras.
    4. Other equipment such as DVD players, flat-screen TVs, games consoles, battery chargers, power rectifiers, cellular/mobile phone signal masts, oil well probes


    Capacitor Grade Tantalum Powder

    Purity: Ta >99.95% ~ 99.98% (Metal basis)

    Applications:
    1. Used to make medium to high voltage (20V-60V) solid tantalum electrolytic capacitors.
    2. Used to produce small, lightweight anodes with capacitance control.
    3. Used in medical technology.

    Specifications:
    Physical and Chemical Properties
    Bulk Density Average Particle Size Impurities (ppm) <
    g/cm3 μm O N
    1.8-3.5 5.0-9.5 1600 60
    1.5-3.0 3.5-6.0 2200 150
    1.5-2.5 3.0-6.0 2000 150
    1.5-2.5 3.0-5.5 2200 150
    1.3-2.0 2.0-4.5 2200 200
    1.5-2.0 2.0-4.0 2500 300
    1.5-2.0 2.0-4.0 2500 300
    1.3-2.0 1.5-3.5 2800 400

    Electrical Properties
    Detecting Condition Standard
    Briquetting Weight Briquetting Density Sintering Condition Energized Voltage/Test Voltage Capacitance Dc Leakage

    2 6.5 1850/30 240/170 5000 6×10-4
    1 5.5 1750/30 200/140 800 4.5×10-4
    0.2 5.5 1750/30 200/140 8000 4×10-4
    1 5.5 1700/30 160/112 10000 4×10-4
    0.5 5 1600/30 160/112 15000 5.5×10-4
    0.15 5 1500/30 140/98 20000 5×10-4
    0.15 5 1450/30 100/70 30000 5×10-4
    0.15 5 1400/30 70/49 40000 5×10-4

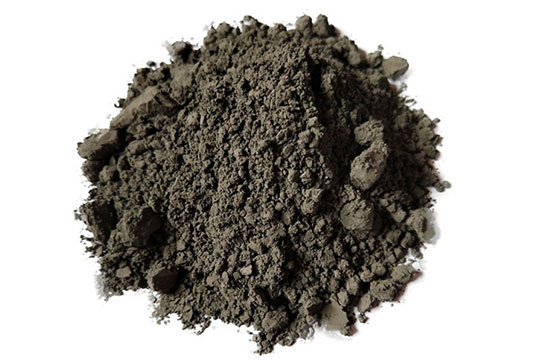

    Metallurgical Grade Tantalum Powder

    Grade: FTa-01 FTa-02 FTa-1

    Appearance: Dark grey powder or black powder

    Grade FTa-01 FTa-02 FTa-1
    Main Content Ta, %, Minimum 99.95 99.95 99.95
    Impurity Content,
    %,max
    O 0.100 0.120 0.180
    C 0.005 0.005 0.008
    N 0.005 0.005 0.008
    H 0.003 0.003 0.003
    Fe 0.004 0.004 0.005
    Ni 0.003 0.003 0.005
    Cr 0.003 0.003 0.005
    Nb 0.003 0.003 0.005
    W 0.002 0.002 0.002
    Mo 0.001 0.001 0.002
    Si 0.003 0.003 0.005
    Mn 0.001 0.001 0.001
    Ti 0.001 0.001 0.001
    Fsss(m) 3.0-10.0 3.0-10.0 3.0-10.0
    Sieve Mesh -80 -80 -80
    Application Tantalum processing and alloying additives

    Special requirements can be agreed upon depending on the supplier, and buyer

    Physical Properties
    Bulk Density (g/cm3) Average Particle Size (μm)
    5.0-7.5 6.0-13.0
    4.5-7.0 6.0-12.0
    3.5 -7.0 5.0-12.0
    3.5-7.0 5.0-12.0

    Particle Sizes:
    -60 mesh, -200 mesh, -325 mesh or customized.
    Special particle size can be customized upon your request.

    Tantalum Powder Applications:
    1. Used as raw material to produce mill products.
    2. Used as additives in the alloy and welding bars.
    3. Used for optic and electronic applications.
    4. Used for manufacturing supper targets.
    5. Used to manufacture capacitors and superalloys.

    Packaging of Tantalum Powder:

    Our tantalum powder is carefully handled to prevent damage during storage and transportation.
