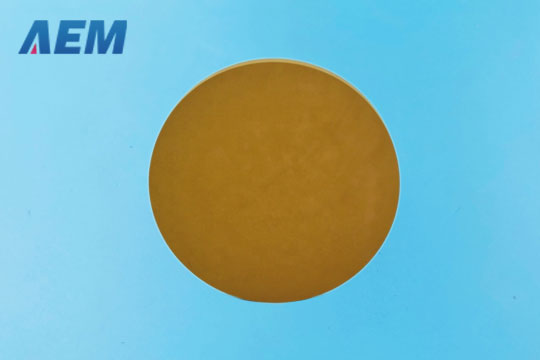

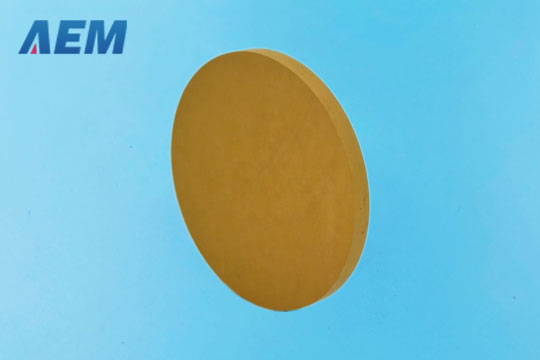

    Vanadium Oxide Sputtering Target

    Vanadium Oxide Sputtering Target
  • Vanadium Oxide Sputtering Target
  • Vanadium Oxide Sputtering Target
  • Vanadium Oxide Sputtering Target
  • Vanadium Oxide Sputtering Target

    Vanadium(V) oxide (vanadia) is a brown/yellow solid, although its color is deep orange when freshly precipitated from an aqueous solution. Because of its high oxidation state, it is both an amphoteric oxide and an oxidizing agent. From the industrial perspective, it is the most important vanadium compound, being the principal precursor to alloys of vanadium, and it is a widely used industrial catalyst.

    Vanadium Oxide Sputtering Target Properties

    Material Vanadium Oxide
    Chemical Formula V2O5
    Color/ Appearance Orange-Yellow, Crystalline Solid
    Melting Point 690℃
    Theoretical Density (g/cc) 3.36
    Z Ration 1
    Sputter RF
    Type of Bond  Indium, Elastomer

    Vanadium Oxide Sputtering Target Specifications

    Purity : 99.9%
    Size: Circular: Diameter <= 14inch, Thickness >= 1mm
    Block: Length <= 32inch, Width <= 12inch, Thickness >= 1mm

    Vanadium Oxide Sputtering Target Applications

    1. Used in semiconductor, chemical vapor deposition (CVD), physical vapor deposition (PVD) display, and optical applications.
    2. Vanadium oxide (V2O5) is used in ceramics as a catalyst and to produce superconducting magnets.
