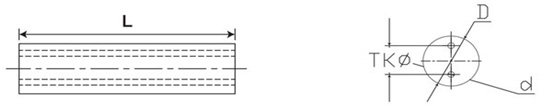

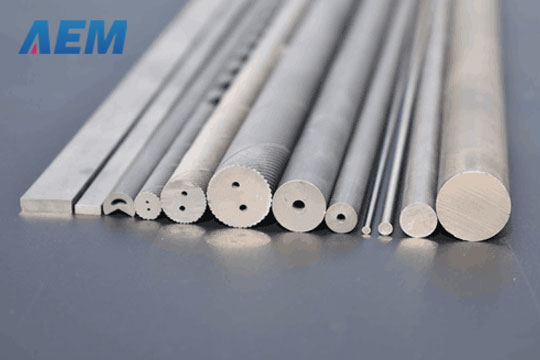

Two Straight Hole Carbide Rod

D (mm)	Tolerance (mm)	d (mm)	Tol. (mm)	TK holes spacing (mm)	Tol. (mm)	Length (mm) Tol:+1/+4mm
D (mm)	Tolerance (mm)	d (mm)	Tol. (mm)	TK holes spacing (mm)	Tol. (mm)	Length (mm) Tol:+1/+4mm
4.0	+0.2/+0.5	0.8	±0.10	1.72	±0.08	310/330/340
5.0	+0.2/+0.5	0.8	±0.10	1.92	±0.08	310/330/340
6.0	+0.3/+0.6	1.0	±0.10	2.90	±0.1	310/330/340
7.0	+0.3/+0.6	1.0	±0.15	3.40	±0.1	310/330/340
8.0	+0.3/+0.6	1.0	±0.15	3.85	±0.15	310/330/340
9.0	+0.3/+0.6	1.4	±0.15	3.85	±0.15	310/330/340
10.0	+0.3/+0.6	1.4	±0.15	4.85	±0.15	310/330/340
11.0	+0.3/+0.7	1.4	±0.15	4.85	±0.15	310/330/340
12.0	+0.3/+0.7	1.75	±0.15	5.85	±0.15	310/330/340
13.0	+0.3/+0.7	1.75	±0.15	5.85	±0.15	310/330/340
14.0	+0.3/+0.7	1.75	±0.15	6.85	±0.15	310/330/340
15.0	+0.3/+0.7	2.0	±0.20	6.85	±0.15	310/330/340
16.0	+0.3/+0.7	2.0	±0.20	7.85	±0.15	310/330/340
17.0	+0.3/+0.8	2.0	±0.20	7.85	±0.15	310/330/340
18.0	+0.3/+0.8	2.0	±0.20	8.85	±0.15	310/330/340
19.0	+0.3/+0.8	2.0	±0.20	8.85	±0.15	310/330/340
20.0	+0.4/+0.9	2.5	±0.25	9.80	±0.2	310/330/340
21.0	+0.4/+0.9	2.5	±0.25	9.80	±0.2	310/330/340
22.0	+0.4/+0.9	2.5	±0.25	10.80	±0.2	310/330/340
23.0	+0.4/+0.9	2.5	±0.25	10.80	±0.2	310/330/340
24.0	+0.4/+0.9	3.0	±0.25	11.75	±0.25	310/330/340
25.0	+0.4/+0.9	3.0	±0.25	11.75	±0.25	310/330/340
26.0	+0.4/+0.9	3.0	±0.25	12.75	±0.25	310/330/340
28.0	+0.4/+0.9	3.0	±0.25	13.75	±0.25	310/330/340
30.0	+0.4/+0.9	3.0	±0.25	13.75	±0.25	310/330/340
32.0	+0.4/+0.9	3.0	±0.25	13.75	±0.25	310/330/340
34.0	+0.4/+0.9	3.0	±0.25	13.75	±0.25	310/330/340

Remark:

Carbide Rod With Parallel Holes (Narrow TK)

D (mm)	Tolerance (mm)	d (mm)	Tol. (mm)	TK holes spacing (mm)	Tol. (mm)	Length (mm) Tol:+1/+4mm
D (mm)	Tolerance (mm)	d (mm)	Tol. (mm)	TK holes spacing (mm)	Tol. (mm)	Length (mm) Tol:+1/+4mm
6.0	+0.3/+0.6	0.8	±0.10	1.40	±0.1	310/330/340
7.0	+0.3/+0.6	0.8	±0.10	1.40	±0.1	310/330/340
8.0	+0.3/+0.6	0.8	±0.10	1.40	±0.1	310/330/340
8.0	+0.3/+0.6	0.8	±0.10	1.85	±0.15	310/330/340
8.0	+0.3/+0.6	1.0	±0.10	2.45	±0.15	310/330/340
9.0	+0.3/+0.6	1.0	±0.10	2.45	±0.15	310/330/340
10.0	+0.3/+0.6	1.0	±0.10	2.45	±0.15	310/330/340
11.0	+0.3/+0.7	1.2	±0.15	3.35	±0.15	310/330/340
12.0	+0.3/+0.7	1.2	±0.15	3.35	±0.15	310/330/340
13.0	+0.3/+0.7	1.2	±0.15	3.35	±0.15	310/330/340
14.0	+0.3/+0.7	1.5	±0.15	4.85	±0.15	310/330/340
15.0	+0.3/+0.7	1.5	±0.15	4.85	±0.15	310/330/340
16.0	+0.3/+0.7	1.5	±0.15	4.85	±0.15	310/330/340
17.0	+0.3/+0.8	2.0	±0.20	6.00	±0.15	310/330/340
18.0	+0.3/+0.8	2.0	±0.20	6.00	±0.2	310/330/340
19.0	+0.3/+0.8	2.0	±0.20	6.00	±0.2	310/330/340
20.0	+0.3/+0.9	2.0	±0.20	6.00	±0.2	310/330/340
21.0	+0.3/+0.9	2.0	±0.20	6.00	±0.2	310/330/340
22.0	+0.3/+0.9	2.0	±0.20	6.00	±0.2	310/330/340
23.0	+0.3/+0.9	2.0	±0.20	7.30	±0.2	310 / 330/340
24.0	+0.3/+0.9	2.0	±0.20	7.30	±0.2	310 / 330/340
25.0	+0.3/+0.9	2.0	±0.20	7.30	±0.2	310 / 330/340

Remark:
